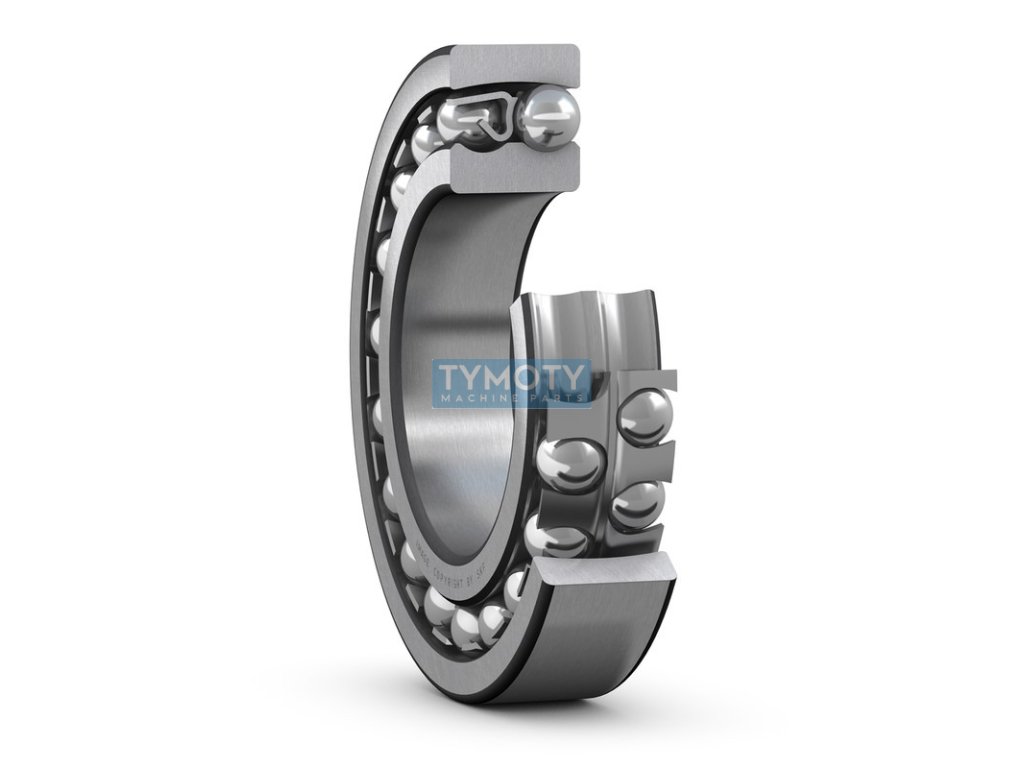

SKF 2311 K/C3 tilting ball bearing
Code: 323377
Product detailed description
SKF 2311 K/C3 - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, a pressed steel cage guided by two rows of balls and with a radial clearance greater than normal.Outer ring for the common spherical raceway of the bearing and compensation of misalignment or deflection of the shaft relative to the housing. The bearing is mounted on a cylindrical shaft using an H 2311 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 23..K taper hole > 2311K |
|---|---|
| Weight: | 2.04 kg |
| EAN: | 7316576608773 |
| Cage: | steel |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 55, 120 |
| Hole profile: | conical (1:12) |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 43 |
| Značení: | 2311 K/C3 |
| Typ: | naklápěcí kuličkové ložisko |
