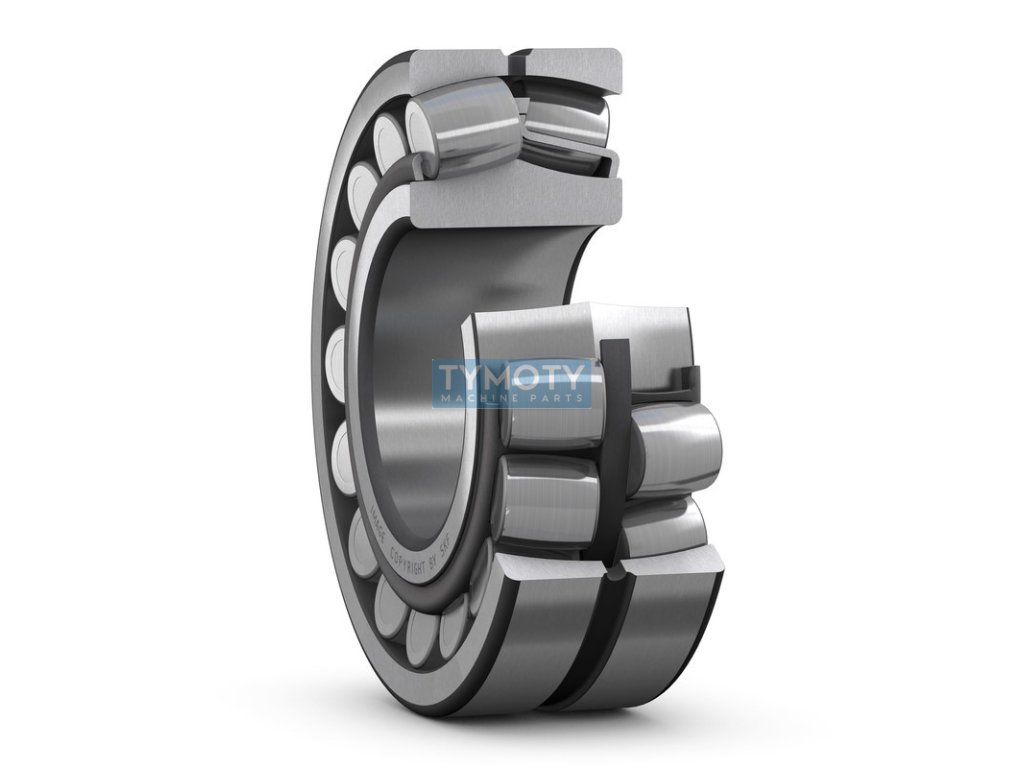

SKF 22313 E cylindrical roller bearing

Product detailed description

SKF 22313 E spherical roller bearing is a high-quality component designed for applications where combined loads, i.e. radial and axial forces, need to be handled. This bearing is part of the Explorer series, which is known for its increased performance and reliability.

The bearing has an inner diameter of 65 mm, an outer diameter of 140 mm and a width of 48 mm. It is equipped with a pressed steel cage, which ensures the strength and stability of the structure. The inner hole is of a cylindrical profile, which allows easy mounting on the shaft. The bearing is made of standard steel for rolling bearings, which ensures high wear resistance and long service life.

The outer ring of the bearing is designed with lubrication grooves and holes, which allows effective lubrication and reduces friction during operation. The bearing is not equipped with a seal, which means that it is suitable for applications where external lubrication and protection against contamination are provided.

The operating temperature range of the bearing is from -30 °C to +200 °C, which allows it to be used in a wide range of industrial applications. The bearing has normal radial clearance, which is suitable for most standard applications. The dimensional accuracy is in accordance with class PN, while the operating accuracy corresponds to class P5, which guarantees high running accuracy.

With a weight of 3.75 kg, the bearing is robust and suitable for harsh conditions. It is ideal for use in industrial machinery where high reliability and load resistance are required. The SKF 22313 E spherical roller bearing is therefore the optimal choice for applications that require reliable performance and long service life.
