SKF 22224 EK cylindrical roller bearing

Product detailed description

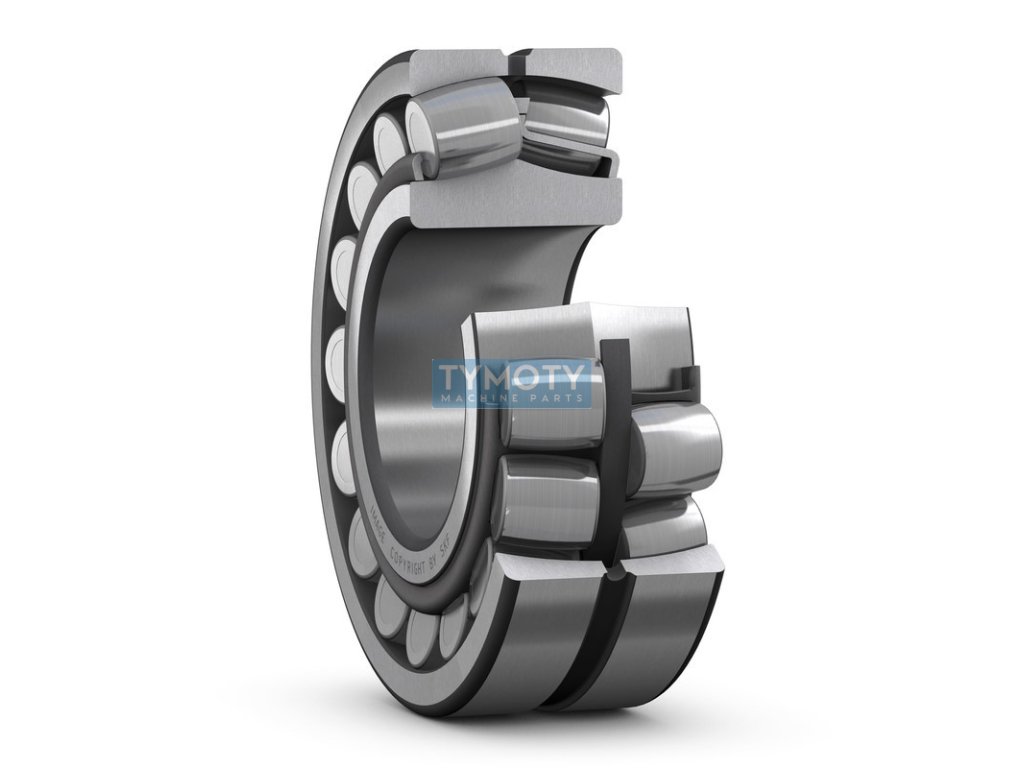

SKF 22224 EK spherical roller bearing is a high-quality component designed for applications requiring reliability and durability. This bearing is designed with optimum operating efficiency and long service life in mind, which is achieved by using standard steel for rolling bearings.

The bearing has an inner diameter of 120 mm, an outer diameter of 215 mm and a width of 58 mm. Its design includes a tapered bore with a taper ratio of 1:12, which allows for precise adjustment and mounting on the shaft. The internal radial clearance is normal, which ensures optimum operating flexibility and adaptability to various load conditions.

The outer ring of the bearing is equipped with a lubrication groove and lubrication holes, which allows effective lubrication and reduces friction during operation. These features are key to maintaining low operating temperatures and extending the life of the bearing.

The bearing is equipped with a pressed steel cage, which ensures stability and uniform distribution of the rolling elements. SKF 22224 EK is an uncovered bearing, which means that it has no seal and is suitable for applications where external lubrication and protection against contamination are provided.

The operating temperature range of the bearing is from -30 °C to +200 °C, which allows it to be used in a wide range of industrial applications. The bearing meets the PN dimensional accuracy and P5 operating accuracy, which guarantees high running accuracy and reliability in demanding conditions.

With a weight of 8.5 kg, the SKF 22224 EK is a robust solution for applications where it is necessary to handle high loads and ensure long-term operational reliability. This component is ideal for use in industrial equipment such as gearboxes, pumps and other mechanisms requiring reliable and durable bearing solutions.
