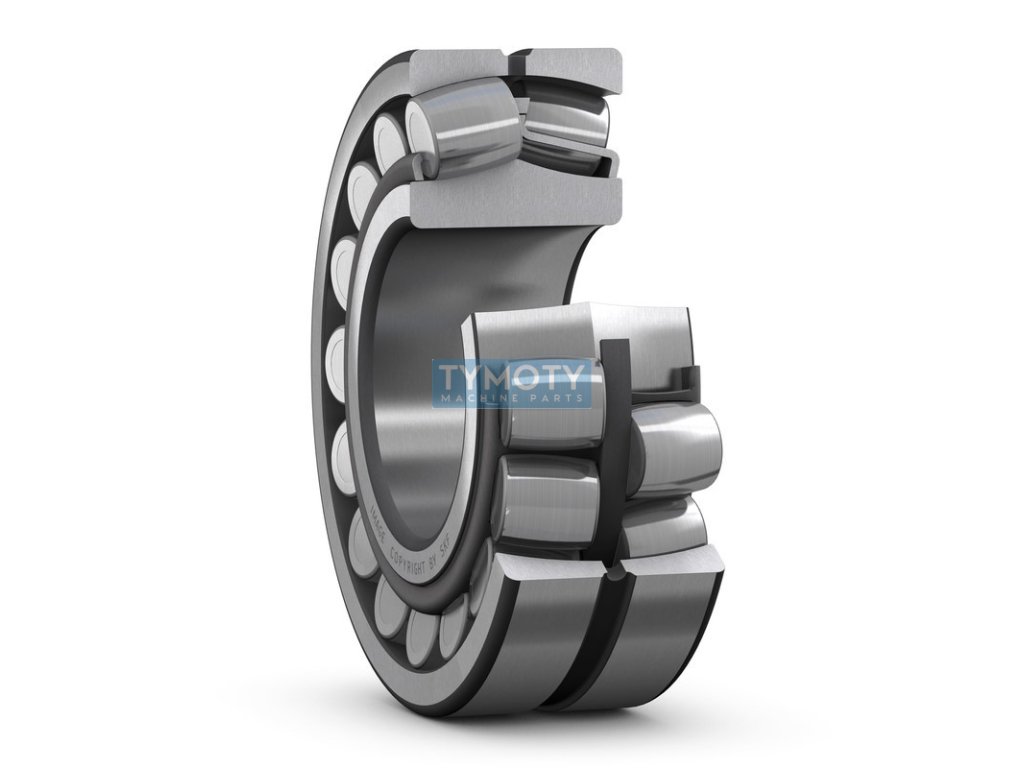

SKF 22220 E cylindrical roller bearing

Product detailed description

SKF 22220 E spherical roller bearing is a high-quality component designed for applications requiring reliability and long service life. This bearing is part of the Explorer series, which is known for its optimized internal geometry and improved materials, which contribute to higher load capacity and better performance.

The bearing has an inner diameter of 100 mm, an outer diameter of 180 mm and a width of 46 mm. It is made of standard rolling bearing steel, which ensures high wear resistance and long-term reliability. The inner ring has a cylindrical bore, which allows easy mounting on the shaft. The internal radial clearance is within the normal range, which is suitable for most standard applications.

The outer ring of the bearing is equipped with a lubrication groove and lubrication holes, which facilitates maintenance and extends the service life of the bearing. The bearing is unsealed, which means that it is uncovered and requires regular maintenance and lubrication. The pressed steel cage ensures proper guidance of the rolling elements and allows operation in a temperature range from -30 °C to +200 °C.

The running accuracy of the bearing is in accordance with the dimensional accuracy PN and the operating accuracy P5, which guarantees high accuracy and reliability in operation. With a weight of 4.9 kg, this bearing is robust and suitable for various industrial applications where high loads and resistance to shock and vibration are required.

The SKF 22220 E spherical roller bearing is ideal for use in heavy industrial conditions, such as drives, gearboxes, construction machinery and other applications where high load capacity and resistance to dynamic loads are required.
