SKF 22214 E/C3 cylindrical roller bearing

Product detailed description

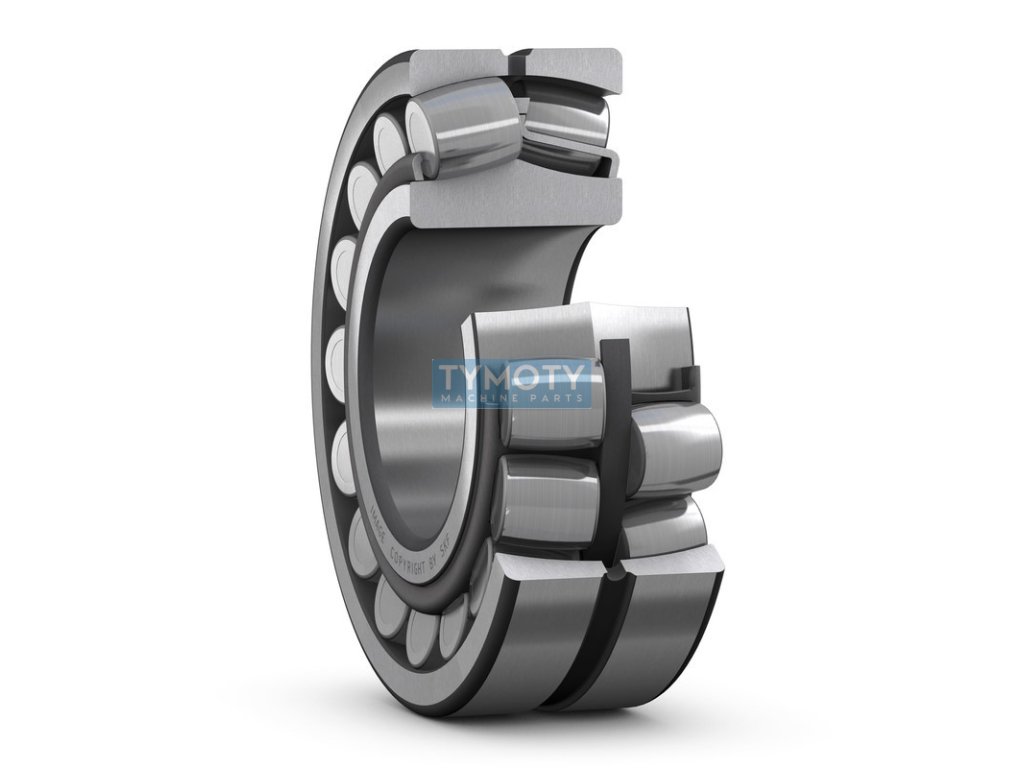

SKF 22214 E/C3 spherical roller bearing is a high-quality component designed for applications where combined loads, i.e. radial and axial forces, need to be handled. This bearing has an inner diameter (d) of 70 mm, an outer diameter (D) of 125 mm and a width (B) of 31 mm. It is made of steel that is standardly used for rolling bearings, which guarantees its high resistance and long service life.

The bearing is equipped with a pressed steel cage, which ensures strength and stability during operation. The internal radial clearance is slightly increased, which is designated as C3, and allows the bearing to better handle thermal expansion and dynamic loads. The hole profile is cylindrical, which simplifies mounting on the shaft.

The outer ring of the bearing contains a lubrication groove with lubrication holes, which allows effective lubrication and extends the operating life of the bearing. The bearing is not equipped with a seal, which means that it is uncovered and requires regular maintenance and lubrication.

The temperature range of operation is from -30 °C to +200 °C, which allows the bearing to be used in a wide range of industrial applications. The running accuracy is defined by the dimensional accuracy PN and the operating accuracy P5, which guarantees reliable and smooth operation at high speeds.

The total weight of the bearing is 1.55 kg, which is an important parameter in the design and assembly of machines and equipment. The SKF 22214 E/C3 spherical roller bearing is ideal for applications where high reliability and resistance to combined loads are required.
