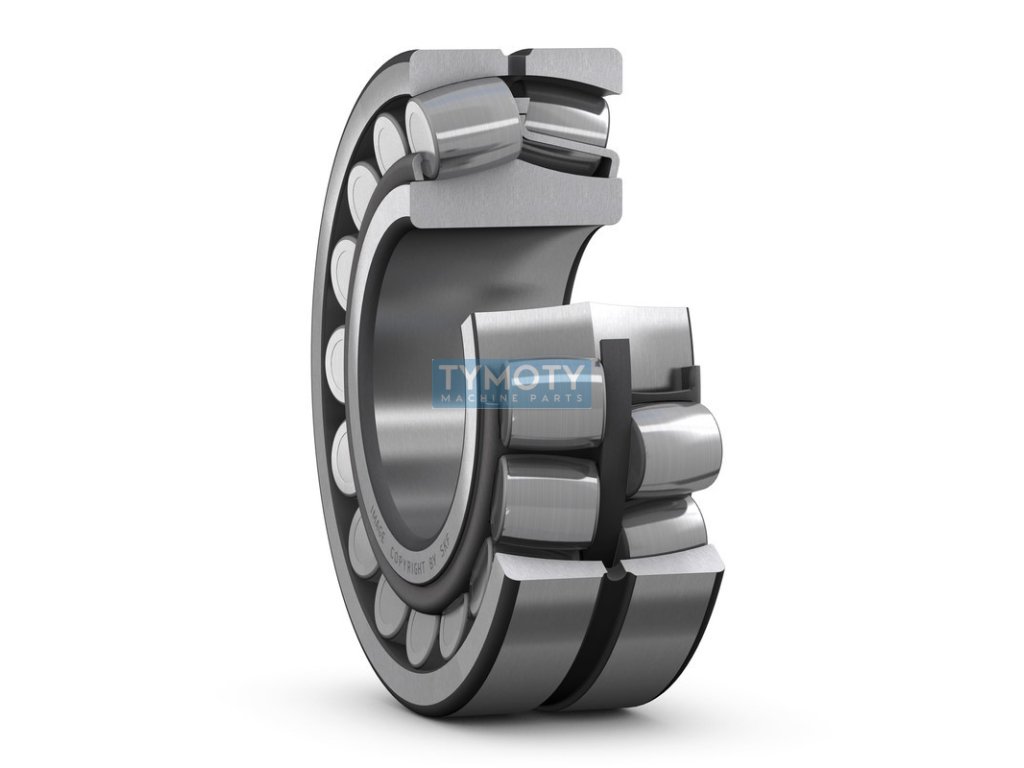

SKF 22213 E/C3 cylindrical roller bearing

Product detailed description

SKF 22213 E/C3 is a spherical roller bearing designed for applications where combined loads and misalignment must be accommodated. This bearing has an inner diameter of 65 mm, an outer diameter of 120 mm and a width of 31 mm. It is made of high-quality steel, which is standard for rolling bearings, and is equipped with a pressed steel cage, which ensures optimal strength and wear resistance.

The bearing is designed with a lubrication groove and holes in the outer ring, which allows for effective lubrication and extends its service life. The hole profile is cylindrical, which facilitates mounting and dismounting in various industrial applications. SKF 22213 E/C3 is seal-free, which means it is suitable for applications where protection against external contamination is not required.

This bearing is capable of operating in a temperature range from -30 °C to +200 °C, making it suitable for various industrial environments. It has a slightly increased radial clearance C3, which allows better adaptation to thermal expansion and dynamic loads. Running accuracy is ensured by dimensional accuracy PN and operating accuracy P5, which guarantees reliable and smooth operation in applications with high precision requirements.

The total weight of the bearing is 1.55 kg, which is optimal for its design parameters and use in various mechanical systems. SKF 22213 E/C3 is an ideal choice for applications where high load capacity and the ability to compensate for misalignment are required, such as heavy industrial machines, conveyor systems and other mechanical equipment.
