SKF 2217 K/C3 tilting ball bearing
Code: 323192
Product detailed description

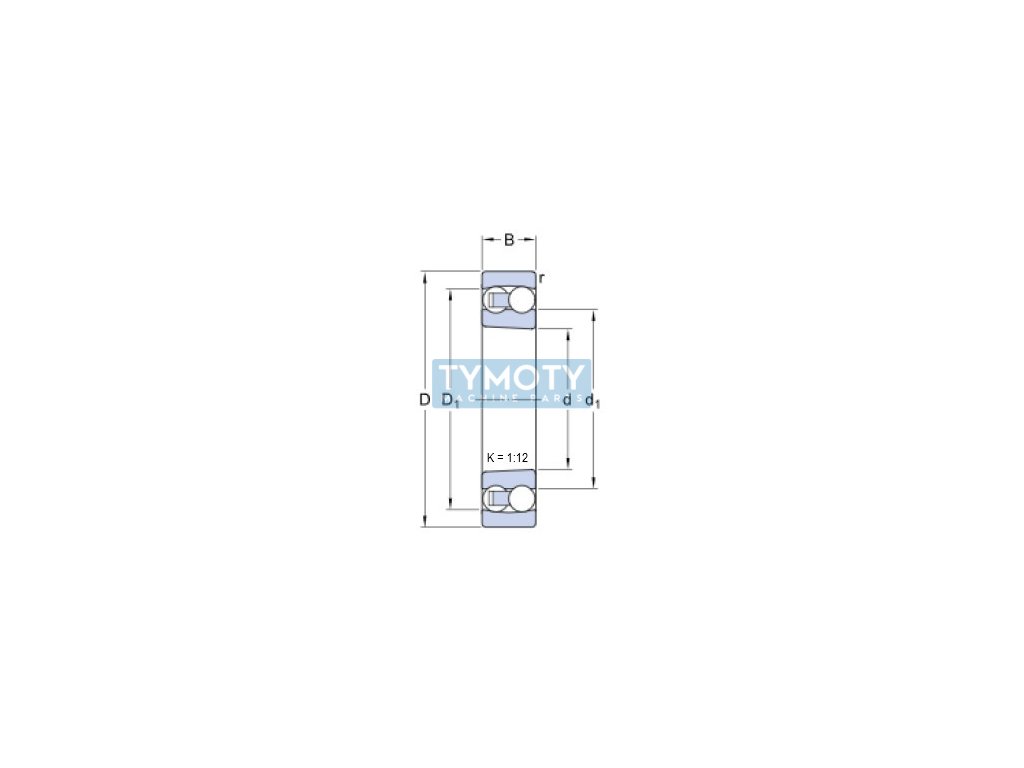

SKF 2218 K/C3 - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, a pressed steel cage guided by two rows of balls and a radial clearance greater than normal.The outer ring has a common spherical raceway of the bearing and compensation for misalignment or deflection of the shaft relative to the housing. The bearing is mounted on a cylindrical shaft using an H 318 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 22..K taper hole > 2217K |
|---|---|
| Weight: | 2.46 kg |
| EAN: | 7316576608650 |
| Cage: | steel |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 85, 150 |
| Hole profile: | conical (1:12) |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +150 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 36 |
| Značení: | 2217 K/C3 |
| Typ: | naklápěcí kuličkové ložisko |
