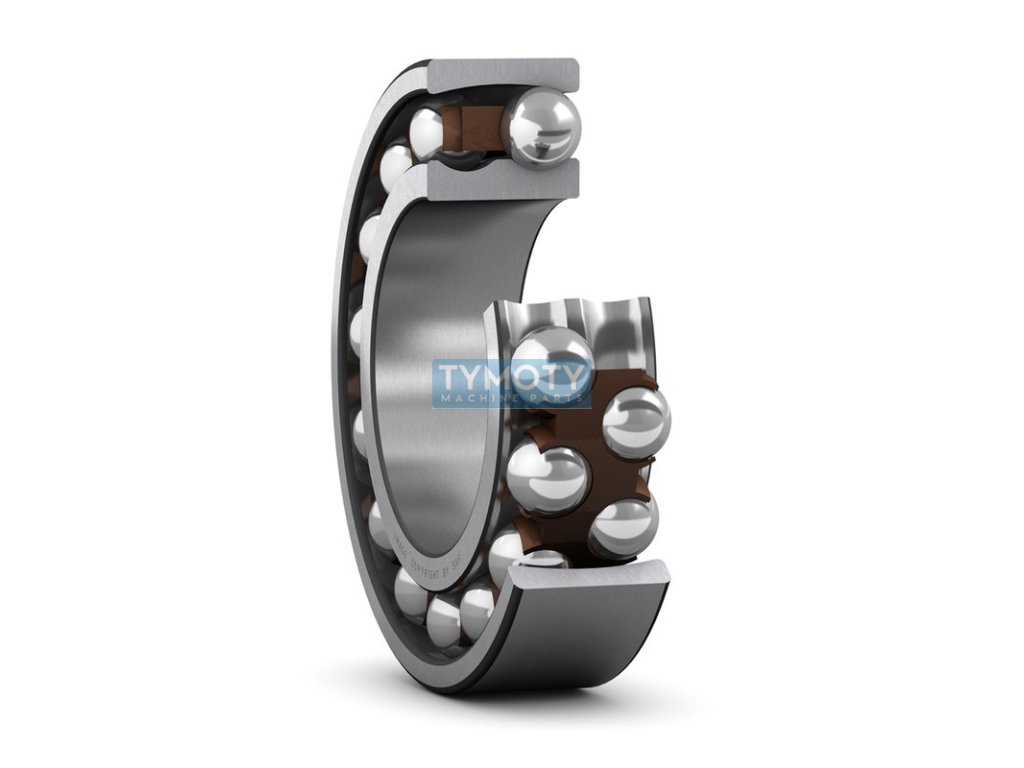

SKF 2212 EKTN9/C3 tilting ball bearing
Code: 615454
Product detailed description
Bearing 2212 EKTN9/C3 SKF - Self-aligning ball bearings with tapered bore have two rows of balls, a common spherical raceway in the outer ring and two deep continuous grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates mounting using adapter sleeves or shrink sleeves. Easy mounting using adapter sleeves or shrink sleeves. Accommodates static and dynamic misalignment. Excellent performance at high speeds. Excellent performance at low loads. Low friction.Additional parameters
| Category: | Bearings > tilting ball > 22..K taper hole > 2212K |
|---|---|
| Weight: | 1.03 kg |
| EAN: | 7316570221855 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 60, 110 |
| Hole profile: | conical (1:12) |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 28 |
| Značení: | 2212 EKTN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
