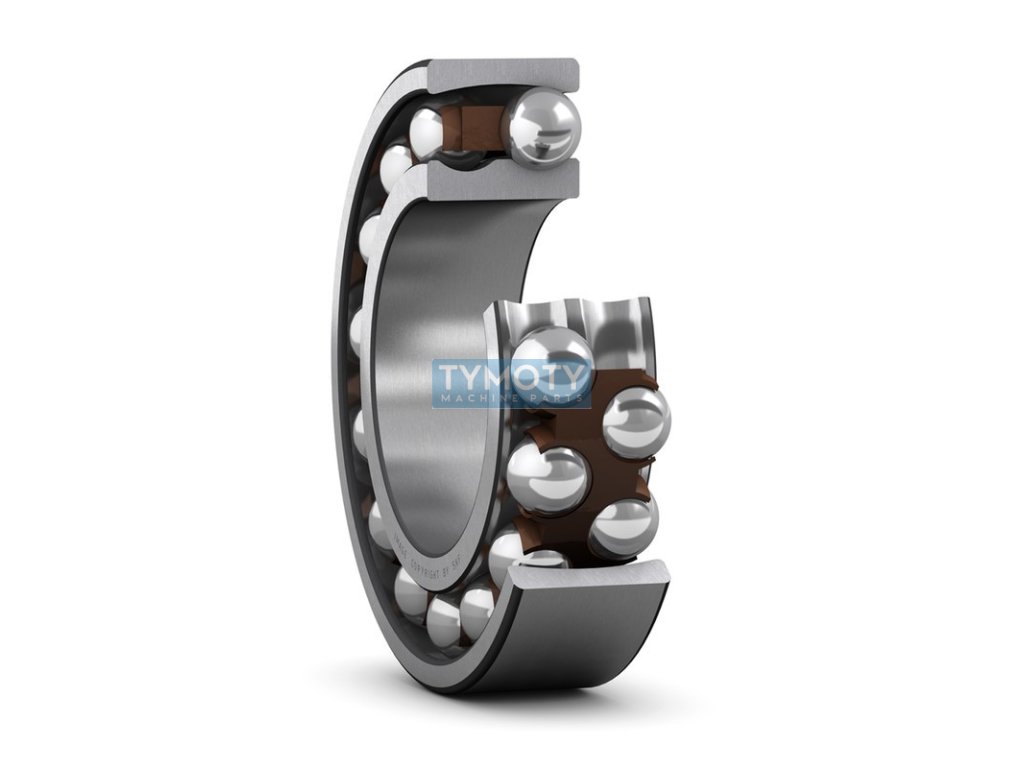

SKF 2208 ETN9/C3 tilting ball bearing
Code: 321298
Product detailed description
SKF 2208 ETN9/C3 - non-separable double row self-aligning ball bearing with optimized internal design, glass fiber reinforced polyamide 6.6 plastic cage guided by two rows of balls and with radial clearance greater than normal.The outer circle of balls, which allows the bearing to tilt and compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120 °C.
Additional parameters
| Category: | Bearings > tilting ball > 22.. > 2208 |
|---|---|
| Weight: | 0.481 kg |
| EAN: | 7316577032478 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 80, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 23 |
| Značení: | 2208 ETN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
