SKF 2208 E-2RS1TN9 tilting ball bearing
Code: 321308
Product detailed description

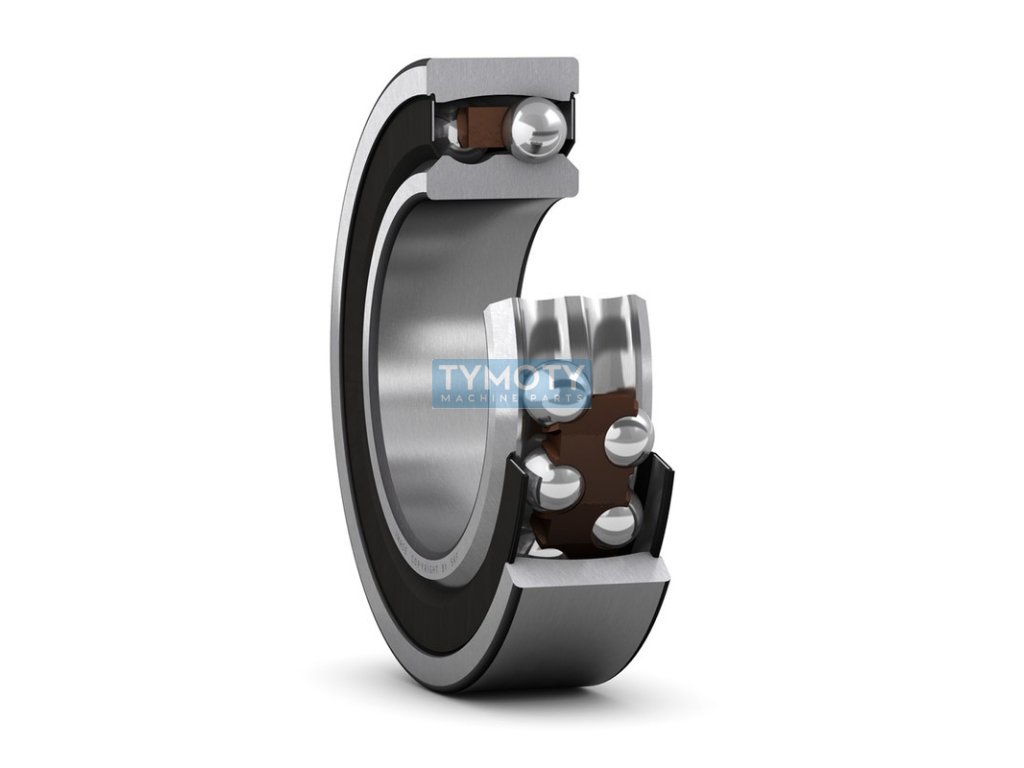

SKF 2208 E-2RS1TN9 - non-separable double-row self-aligning ball bearing with optimized internal design, plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls, with double-sided friction seal and normal radial smell. wear-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on the beveled edges of the inner ring. shaft relative to the body. The bearing is filled with high-quality lubricant with a temperature range from -40 °C to +100 °C, briefly up to +120 °C for the entire service life of the bearing.Additional parameters
| Category: | Bearings > tilting ball > 22.. > 2208 |
|---|---|
| Weight: | 0.504 kg |
| EAN: | 7316576623233 |
| Cage: | polyamide |
| Clearance: | normal |

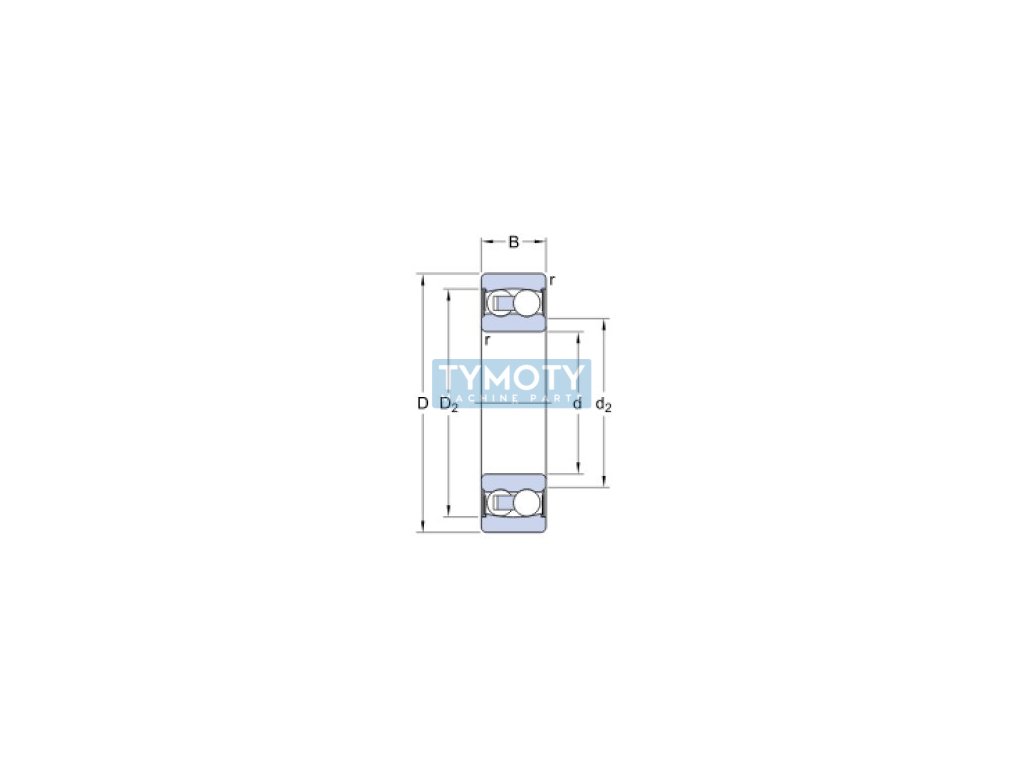

| Diameter D (mm): | 80, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -30 |
| Seal: | double-sided contact, rubber |
| Width B (mm): | 23 |
| Značení: | 2208 E-2RS1TN9 |
| Typ: | naklápěcí kuličkové ložisko |
