SKF 2205 E-2RS1KTN9/C3 tilting ball bearing

Product detailed description

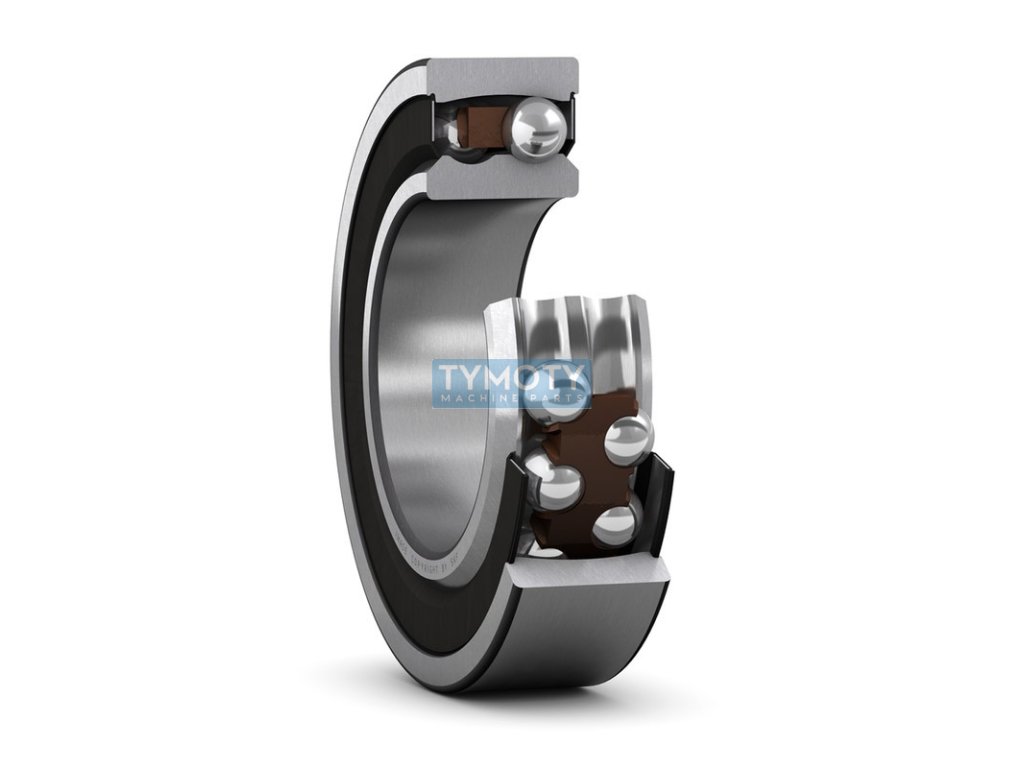

SKF 2205 E-2RS1KTN9/C3 - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, optimized internal design, a plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls, both with normal.
The seals are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on the beveled edges of the inner ring. The outer ring has a common spherical raceway for both rows of balls, which allows the bearing to be tilted and compensate for misalignment or deflection of the shaft relative to the housing. The bearing is filled with high-quality lubricant with a temperature range from -40°C to +100°C, briefly up to +120°C for the entire service life of the bearing.
