SKF 1726208-2RS1 clamping bearing

Product detailed description

SKF 1726208-2RS1 is a clamping bearing designed for various applications where reliable and precise mounting of rotating components is required. This bearing is manufactured by the renowned manufacturer SKF, known for its high quality and reliability.

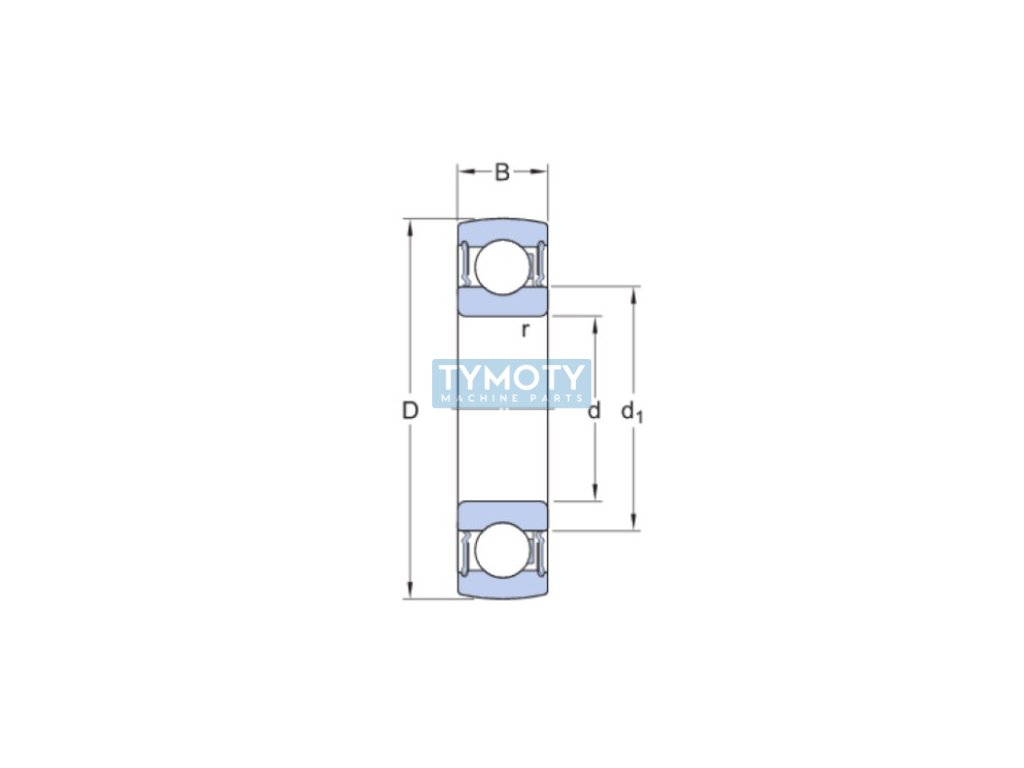

The bearing has an inner diameter (d) of 40 mm, an outer diameter (D) of 80 mm and a width (B) of 18 mm. The inner ring is without expansion and has a cylindrical hole, which allows easy mounting on the shaft. The outer ring is shaped into a spherical profile, which improves the bearing's ability to compensate for misalignment and increases its flexibility in various mounting conditions.

The material used to manufacture the bearing is standard steel for rolling bearings, which ensures high wear resistance and long service life. The bearing is equipped with a plastic cage, which reduces friction and increases the efficiency of the bearing. The double-sided contact seal provides protection against dirt and moisture, thus extending the bearing life and reducing the need for maintenance.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows its use in various climatic conditions. The bearing has normal clearance and meets the accuracy class P0/PN, respectively. ABEC 1, which guarantees sufficient accuracy for most standard applications.

The total weight of the bearing is 0.346 kg, which is optimal for its dimensions and design. The SKF 1726208-2RS1 bearing is ideal for applications where high reliability and accuracy are required, while its design features allow for easy installation and long-term operation without the need for frequent maintenance.
