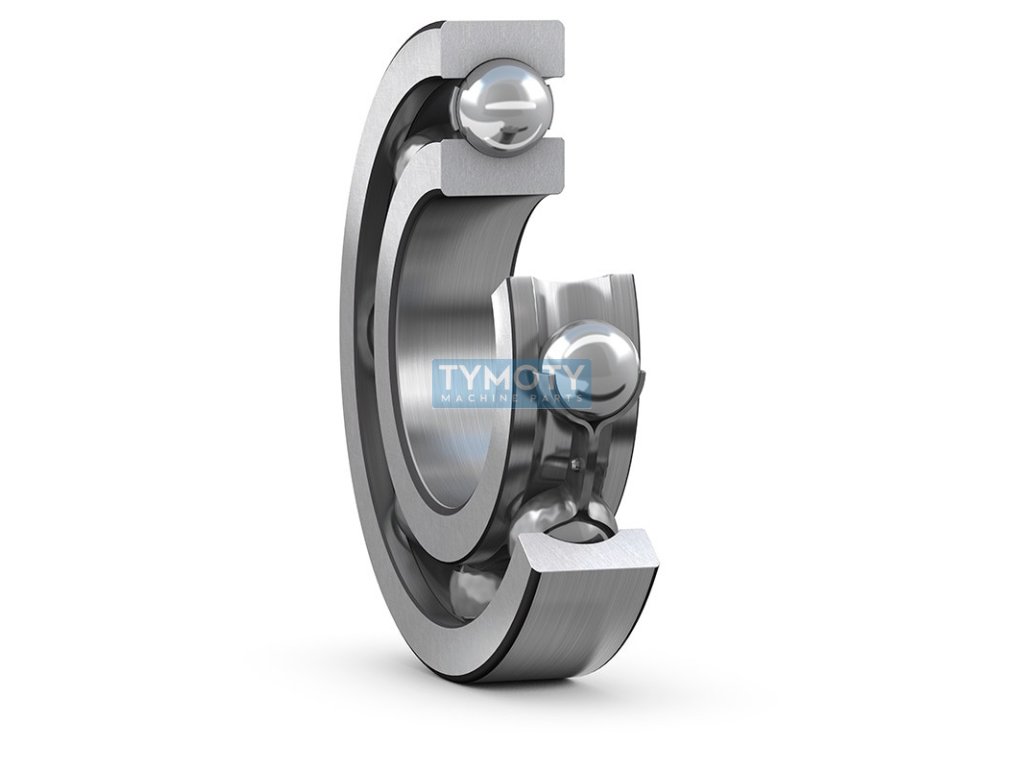

SKF 16009 deep groove ball bearing
Code: 318095
Product detailed description
SKF Explorer bearing 16009 - non-separable single row radial ball bearing open without seal with steel cage and normal radial clearance. The cage of the 16009 bearing is guided by balls.SKF Explorer class 16009 bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with higher accuracy. The dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 160xx > 16009 |
|---|---|
| Weight: | 0.166 kg |
| EAN: | 7316577015853 |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 45, 75 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 10 |
| Značení: | 16009 |
| Typ: | kuličkové ložisko |
