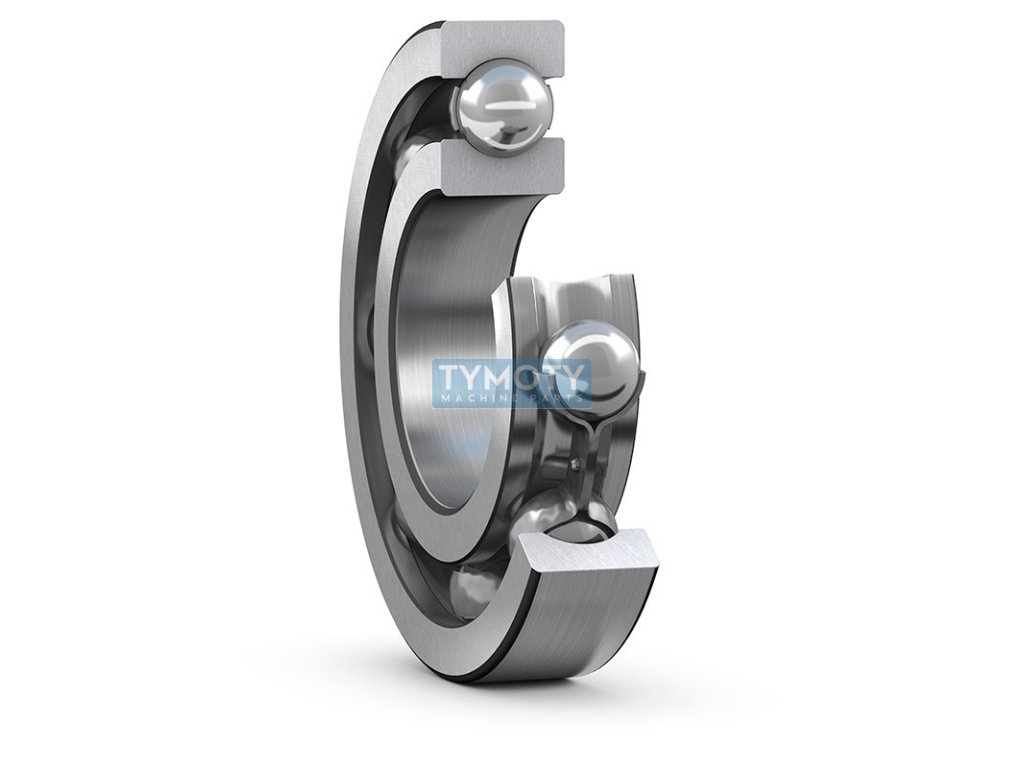

SKF 16004/C3 deep groove ball bearing
Code: 318044
Product detailed description
SKF Explorer bearing 16004/C3 - non-separable single row radial ball bearing open without seals with a steel cage and with a radial clearance greater than normal. The cage of the 16004 C3 bearing is guided by balls.SKF 16004 Explorer class bearings represent a new group of high-performance rolling bearings, offering a significant increase in the main operating parameters, such as noise, vibration, heat generation, operational reliability, dynamic load capacity and are manufactured with a higher. Dimensional accuracy corresponds to accuracy class P6.
Additional parameters
| Category: | Bearings > ball > single row 160xx > 16004 |
|---|---|
| Weight: | 0.049 kg |
| EAN: | 7316577058294 |
| Cage: | steel |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 20, 42 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -20 |
| Seal: | without gaskets |
| The shape of the outer ring: | without flange / groove |
| Width B (mm): | 8 |
| Značení: | 16004/C3 |
| Typ: | kuličkové ložisko |
