SKF 1310 ETN9/C3 tilting ball bearing
Code: 614923
Product detailed description

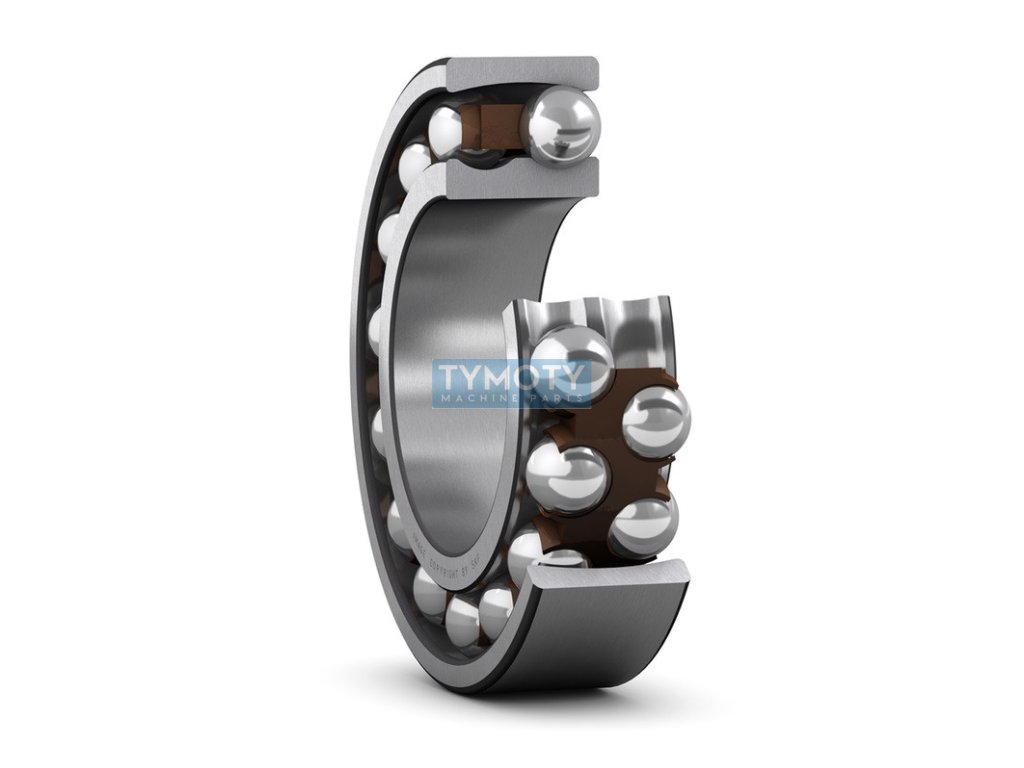

Bearing 1310 ETN9/C3 SKF - Self-aligning ball bearings have two rows of balls, a common raceway in the outer ring and two deep continuous grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. They adapt to static and dynamic misalignment. Excellent performance at high speeds. Excellent performance at low loads. Low friction.Additional parameters
| Category: | Bearings > tilting ball > 13.. > 1310 |
|---|---|
| Weight: | 1.18 kg |
| EAN: | 7316576622267 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 50, 110 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 27 |
| Značení: | 1310 ETN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
