SKF 1309 EKTN9 tilting ball bearing

Code: 614918
Not rated
50,40 € –8 %
SKF 1309 EKTN9 tilting ball bearing
50,40 € –8 % 46,10 € / pcs 55,78 € incl. VAT
In stock (121 pcs)
Delivery to:
05/08/2025
Delivery offer
TOP quality / d=45 mm, D=100 mm, B=25 mm - self-aligning ball bearing 1309 EKTN9 - manufacturer SKF

Detailed information

Delivery throughout the EU

Product detailed description

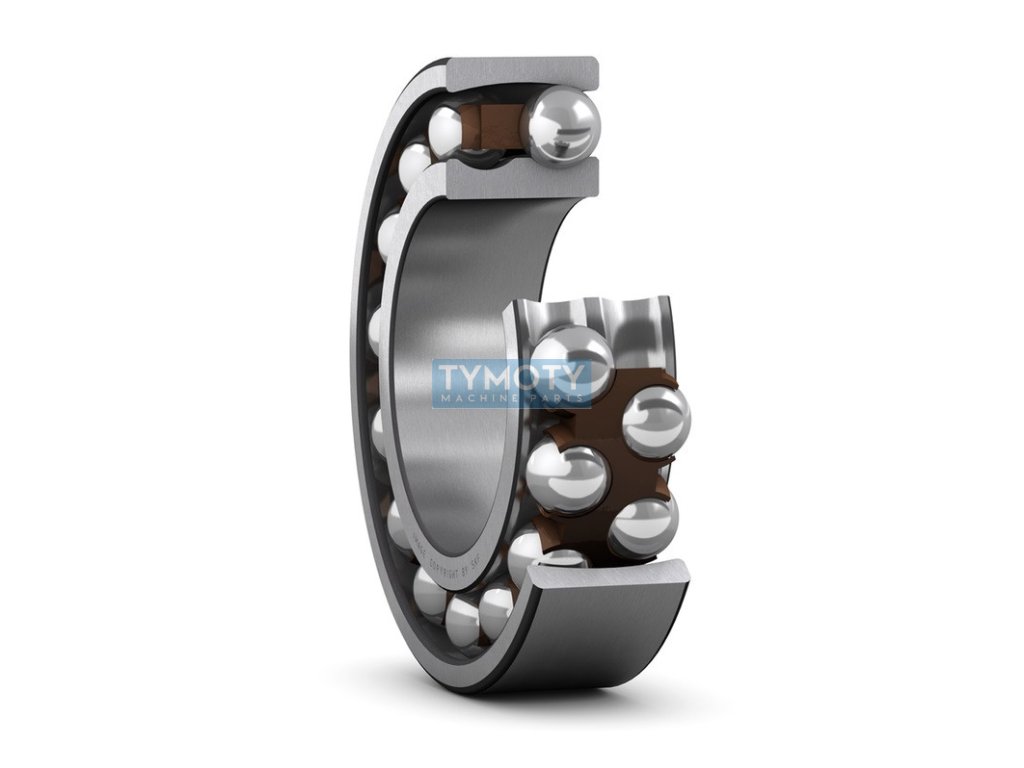

Bearing 1309 EKTN9 SKF - Self-aligning ball bearings with tapered bore have two rows of balls, a common spherical raceway in the outer ring and two deep continuous grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. The tapered bore facilitates mounting using adapter sleeves or shrink sleeves. Easy mounting using adapter sleeves or shrink sleeves. Accommodates static and dynamic misalignment. Excellent performance at high speeds. Excellent performance at low loads. Low friction.

Additional parameters

Category: Bearings > tilting ball > 13..K taper hole > 1309K
Weight: 0.899 kg
EAN: 7316576620768
Cage: polyamide
Clearance: normal
Diameter D (mm): 45, 100
Hole profile: conical (1:12)
Manufacturer's brand: SKF
Material: steel
Maximum temperature °C: +120
Minimum temperature °C: -30
Seal: without gaskets
Width B (mm): 25
Značení: 1309 EKTN9
Typ: naklápěcí kuličkové ložisko
