SKF 1209 EKTN9 tilting ball bearing
Code: 322308
Product detailed description

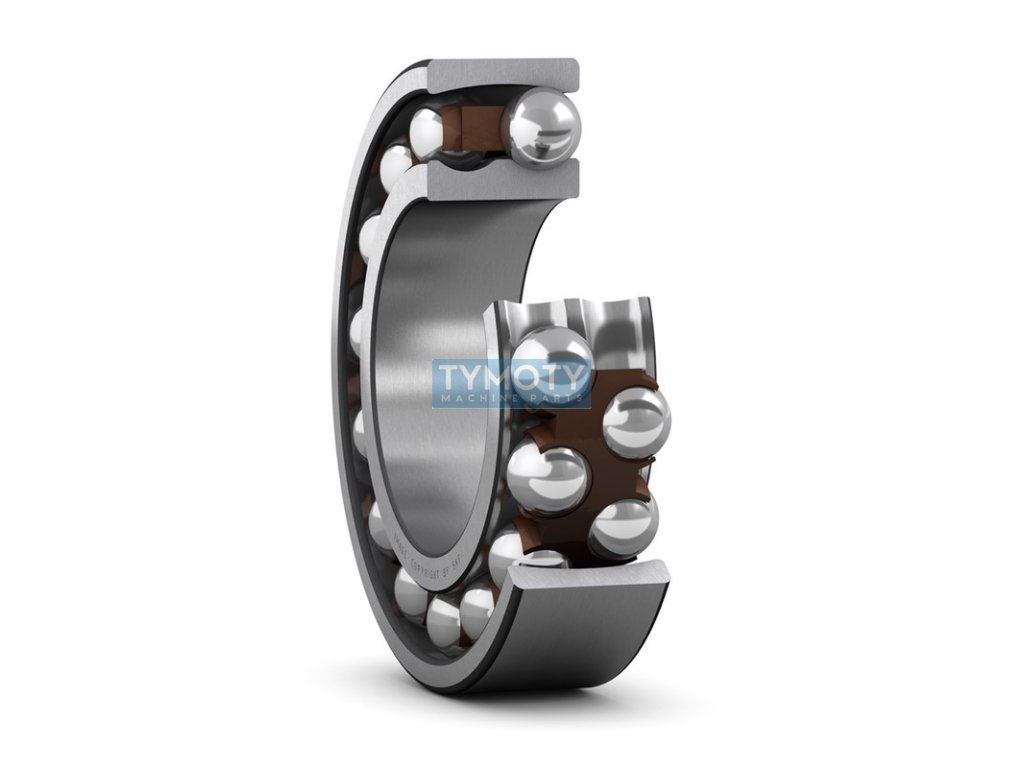

SKF 1209 EKTN9 - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, optimized internal design, a plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls and with normal radial clearance. track for both rows of balls, thus allowing the bearing to tilt and compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120°C.The bearing is mounted on a cylindrical shaft using an H 209 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 12..K taper hole > 1209K |
|---|---|
| Weight: | 0.451 kg |
| EAN: | 7316576622229 |
| Cage: | polyamide |
| Clearance: | normal |
| Diameter D (mm): | 85, 45 |
| Hole profile: | conical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 19 |
| Značení: | 1209 EKTN9 |
| Typ: | naklápěcí kuličkové ložisko |
