SKF 1208 ETN9/C3 tilting ball bearing
Code: 320218
Product detailed description

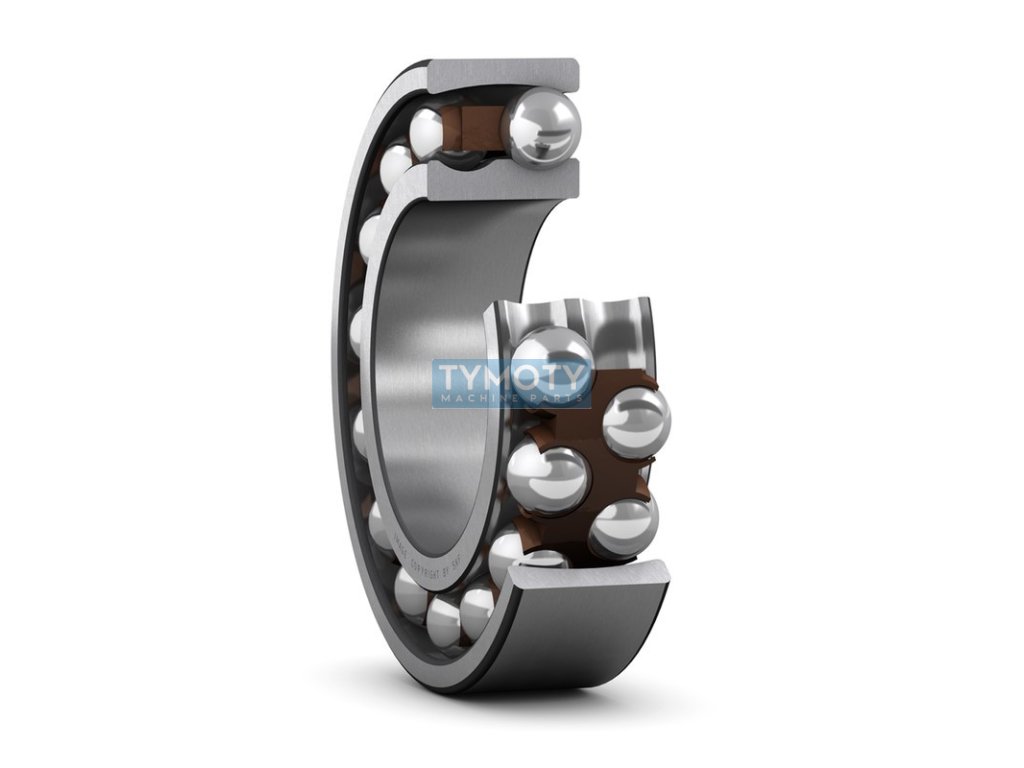

SKF 1208 ETN9/C3 - non-separable double row self-aligning ball bearing with optimized internal design, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls and with radial clearance greater than normal. balls, which allows the bearing to be tilted and compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120 °C.Additional parameters
| Category: | Bearings > tilting ball > 12.. > 1208 |
|---|---|
| Weight: | 0.405 kg |
| EAN: | 7316576625701 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |

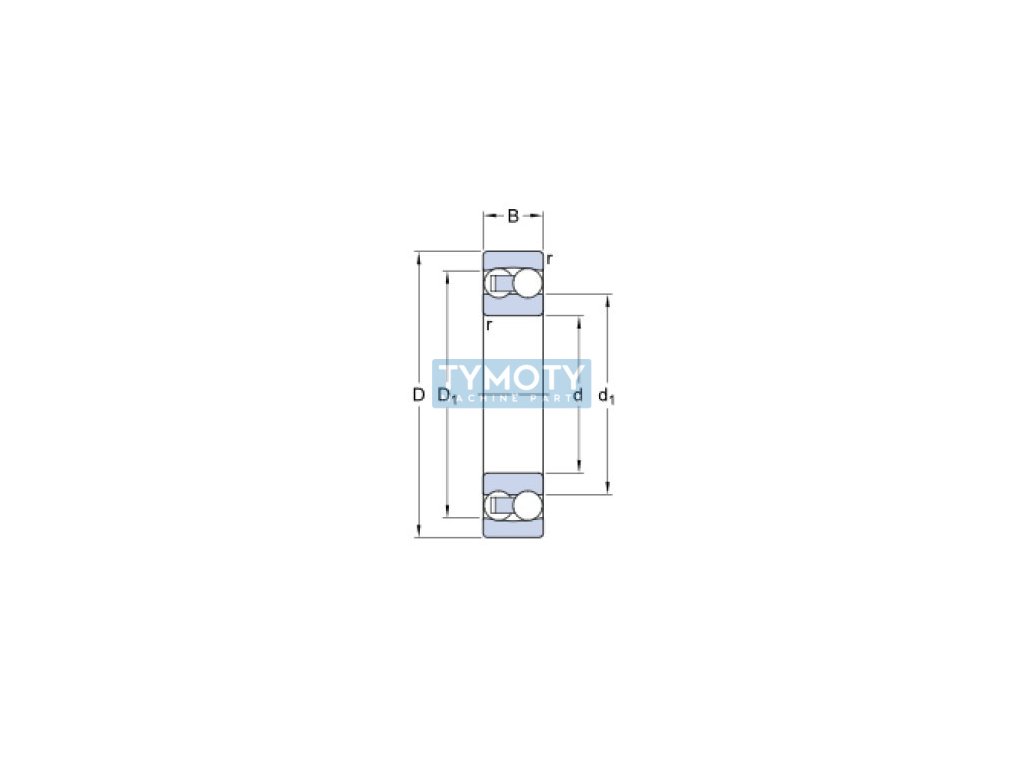

| Diameter D (mm): | 80, 40 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 18 |
| Značení: | 1208 ETN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
