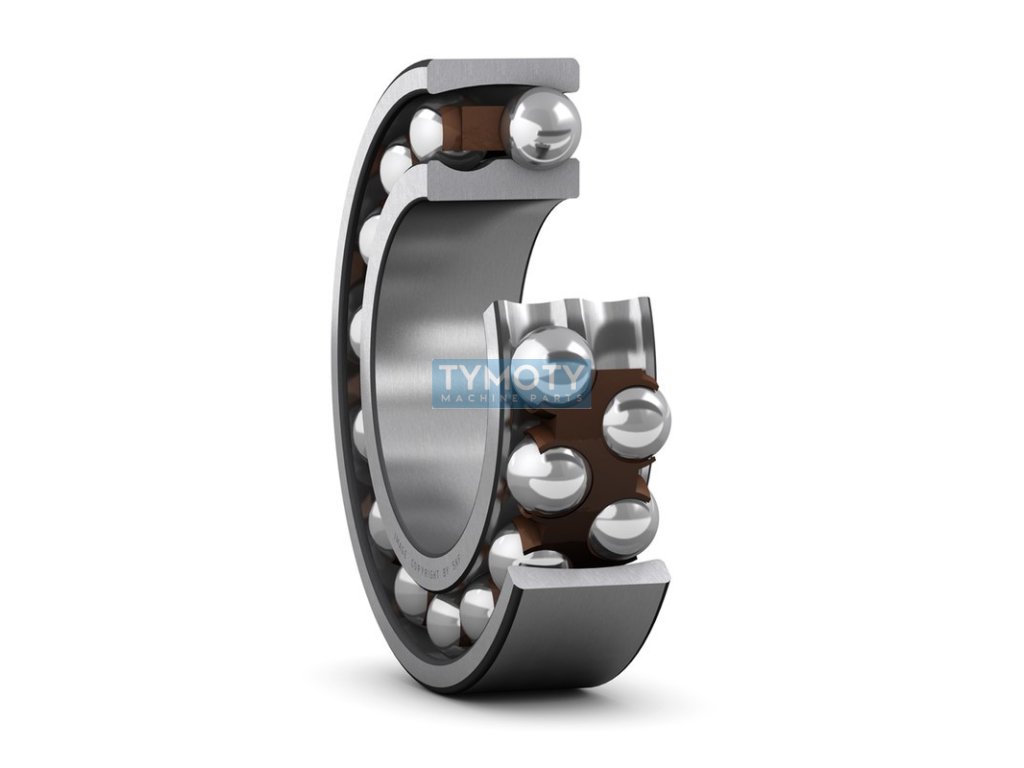

SKF 1208 EKTN9/C3 tilting ball bearing
Code: 322298
Product detailed description
SKF 1208 EKTN9/C3 - non-separable double row self-aligning ball bearing with a 1:12 tapered bore, optimized internal design, plastic cage made of glass fiber reinforced polyamide 6.6 guided by two rows of balls and with radial clearance. spherical raceway for both rows of balls, which allows the bearing to be tilted and to compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120°C.The bearing is mounted on a cylindrical shaft using an H 208 adapter sleeve.
Additional parameters
| Category: | Bearings > tilting ball > 12..K taper hole > 1208K |
|---|---|
| Weight: | 0.405 kg |
| EAN: | 7316576626562 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 80, 40 |
| Hole profile: | conical (1:12) |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 18 |
| Značení: | 1208 EKTN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
