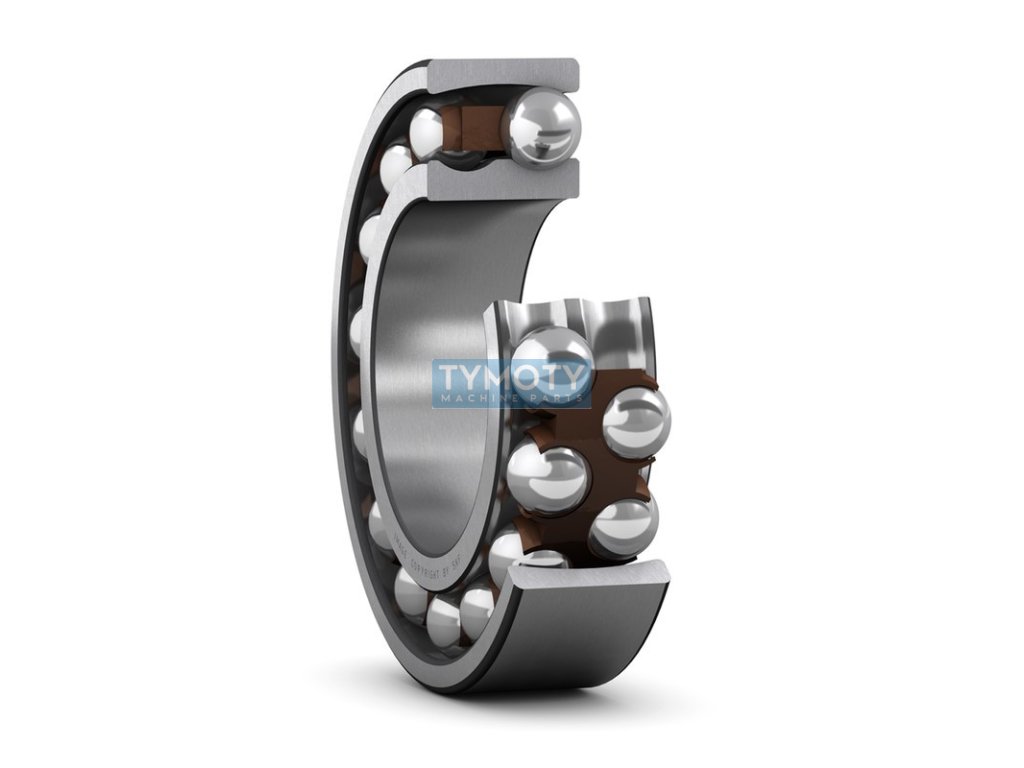

SKF 1206 ETN9/C3 tilting ball bearing
Code: 320178
Product detailed description
SKF 1206 ETN9/C3 - non-separable double row self-aligning ball bearing with optimized internal design, glass fiber reinforced polyamide 6.6 plastic cage guided by two rows of balls and with radial clearance greater than normal.The outer circle of balls, which allows the bearing to be tilted and compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120 °C.
Additional parameters
| Category: | Bearings > tilting ball > 12.. > 1206 |
|---|---|
| Weight: | 0.216 kg |
| EAN: | 7316577296528 |
| Cage: | polyamide |
| Clearance: | C3 - slightly enlarged |
| Diameter D (mm): | 30, 62 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 16 |
| Značení: | 1206 ETN9/C3 |
| Typ: | naklápěcí kuličkové ložisko |
