SKF 1202 ETN9 tilting ball bearing
Code: 320108
Product detailed description

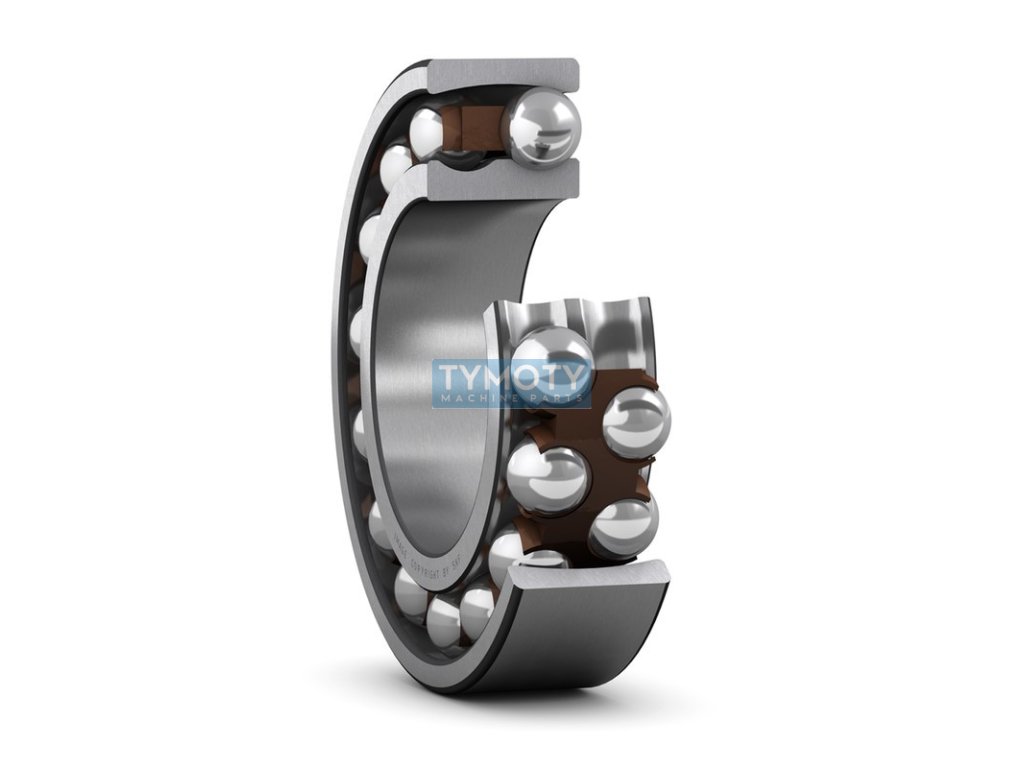

SKF 1202 ETN9 - non-separable double-row self-aligning ball bearing with optimized internal design, plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls and with normal radial clearance.The outer ring has a common ring that allows the bearing to be tilted and compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120 °C.
Additional parameters
| Category: | Bearings > tilting ball > 12.. > 1202 |
|---|---|
| Weight: | 0.05 kg |
| EAN: | 7316576623097 |
| Cage: | polyamide |
| Clearance: | normal |

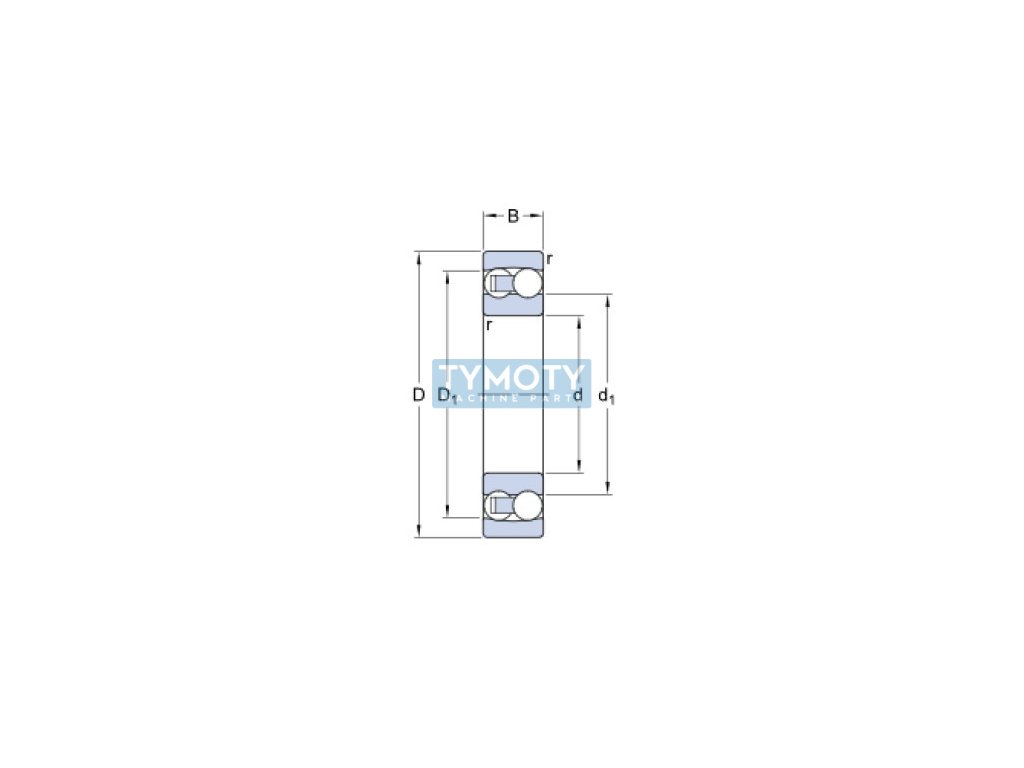

| Diameter D (mm): | 15, 35 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Maximum temperature °C: | +120 |
| Minimum temperature °C: | -30 |
| Seal: | without gaskets |
| Width B (mm): | 11 |
| Značení: | 1202 ETN9 |
| Typ: | naklápěcí kuličkové ložisko |
