SKF 11206 TN9 tilting ball bearing
Code: 322015
Product detailed description

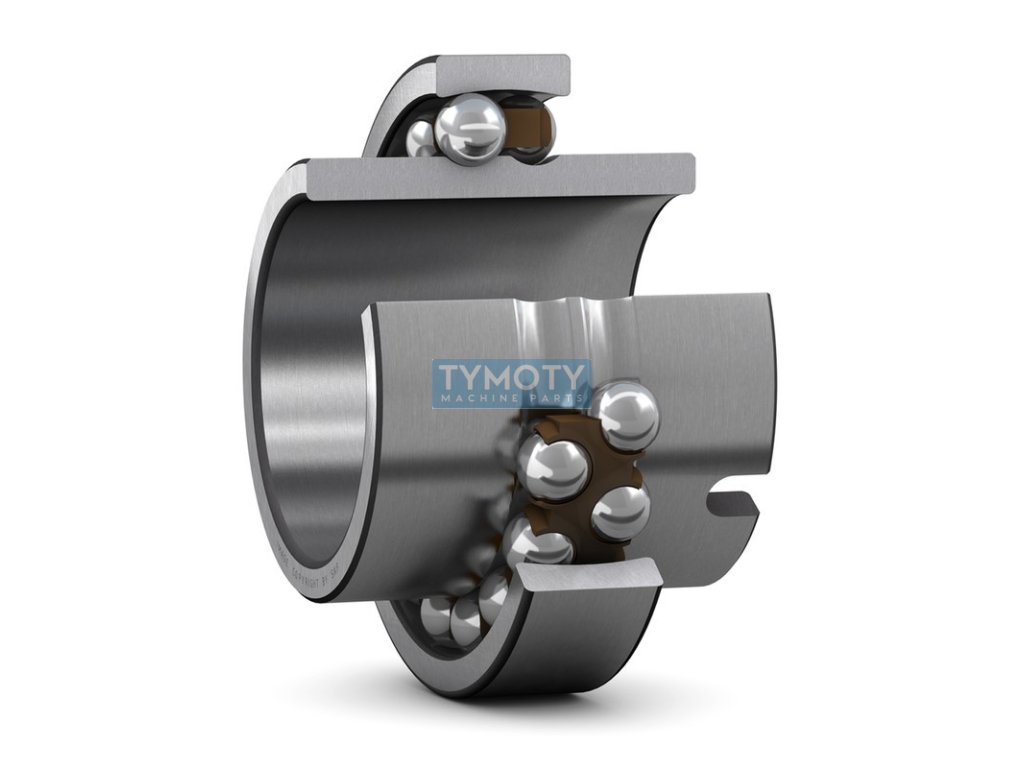

SKF 11206 TN9 - non-separable double row self-aligning ball bearing with an extended inner ring, a plastic cage made of glass-fiber reinforced polyamide 6.6 guided by two rows of balls and with normal radial clearance. balls, thus allowing the bearing to be tilted and to compensate for misalignment or deflection of the shaft relative to the housing. The bearing can operate at temperatures up to +120 °C.Additional parameters
| Category: | Bearings > tilting ball > with a wider inner ring > 11206 |
|---|---|
| Weight: | 0.35 kg |
| EAN: | 7316571228235 |
| Cage: | plastic |
| Clearance: | normal |

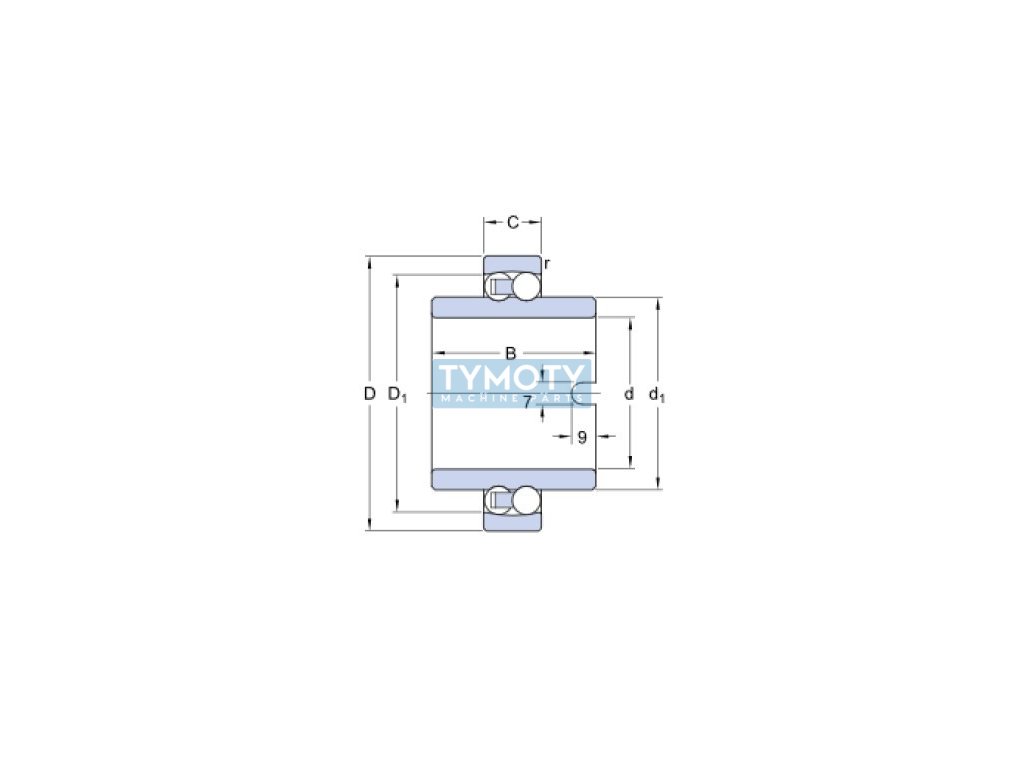

| Diameter D (mm): | 30, 62 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | SKF |
| Material: | steel |
| Width B (mm): | 48 |
| Width C (mm): | 16 |
| Značení: | 11206 TN9 |
| Typ: | naklápěcí kuličkové ložisko |
