Silent block type 1 - 10x6 M4x10
Code: 101018
Product detailed description

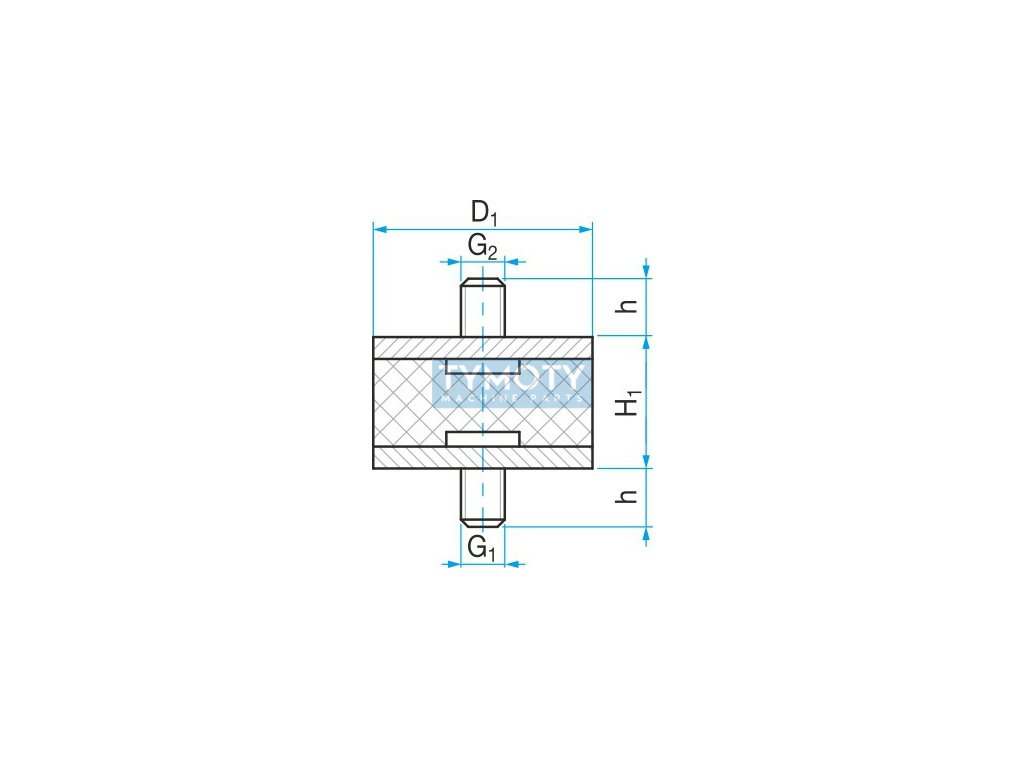

Silent blocks type 1 - cylindrical spring with threaded pins
Silent blocks type 1 represent a simple and effective solution for damping shocks, vibrations and noise in various technical applications. These are cylindrical rubber elements equipped with metal threaded pins at both ends, which allow for easy and firm attachment to the structure.
Characteristics:
- Construction: Rubber cylinder with two opposing threaded pins
- Material: Rubber (usually with a hardness of 55-65 ShA) in combination with metal parts
- Threads: Standard metric (M3, M4, M5, etc.)
- Damping: Vibration, noise and shock
- Mounting: Firm screwing into the structural parts of the device
Type 1 silent blocks are particularly suitable for:
- Machinery and industrial equipment
- Fans, compressors, pumps
- Measuring instruments, laboratory equipment
- Electronic and electrotechnical components
- Air conditioning and refrigeration units
Advantages:
- Easy assembly thanks to threaded studs
- Long service life with proper load
- Noise reduction and extended service life of the equipment
- Various dimensions and hardnesses according to application requirements
Additional parameters
| Category: | Silent blocks > cylindrical: screw-screw > type 1 |
|---|---|
| Diameter d1 (mm): | 10 |
| Hardness: | 55 |
| Height H1 (mm): | 6 |
| Material: | NR |
| Thread G1: | M4x10 |
| Číslo výrobce: | 700054 |
| Typ: | 1 |
