Setting ring DIN 705A 55x80x18 galvanized

Product detailed description

The adjusting ring according to DIN 705A with dimensions of 55x80x18 mm is a structural element designed for precise positioning and fixation of components on shafts. This ring is made of steel and surface-treated with galvanic zinc, which increases its corrosion resistance. The zinc coating is carried out using the galvanic plating method, which ensures a uniform layer of zinc on the surface, thereby extending the service life of the component in corrosive environments.

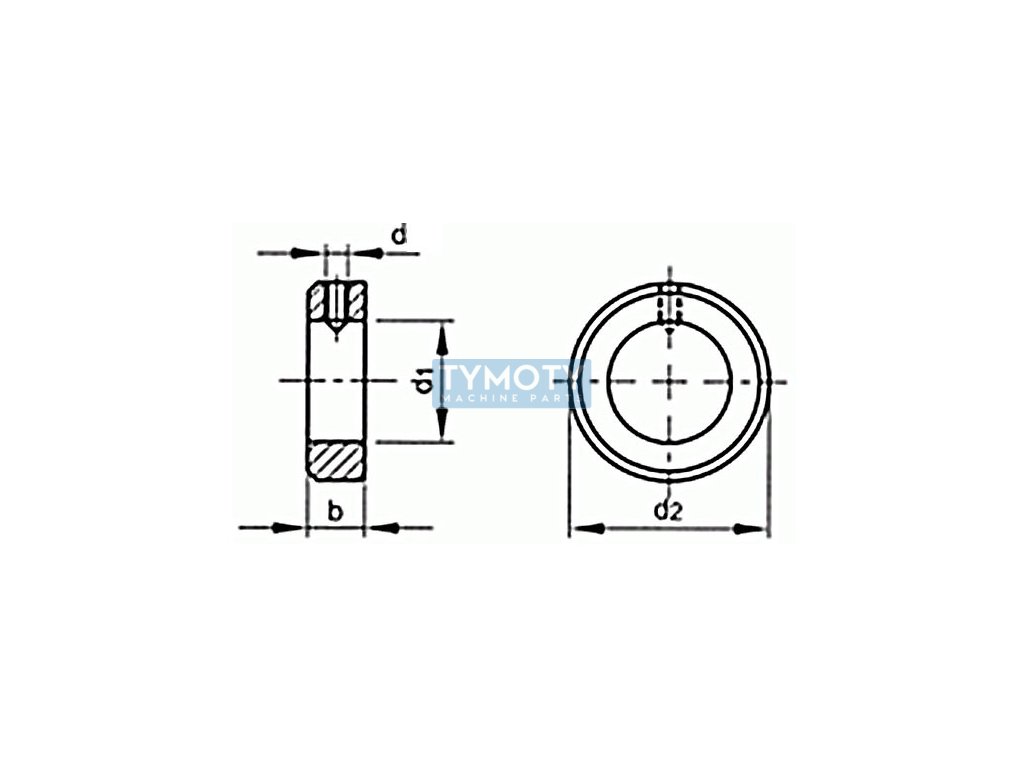

The ring is equipped with an adjusting screw according to DIN 553/ISO 7434, which allows for a firm attachment to the shaft. This screw is located in the threaded hole of the ring and, by tightening it, the ring is fixed in the desired position, preventing its movement. The ring dimensions of 55 mm (inner diameter) x 80 mm (outer diameter) x 18 mm (width) are optimized for a light series of applications where positioning accuracy and reliability are important.

The adjusting ring is suitable for use in various industries where precise adjustment and securing of the position of components on rotating machine parts is required. Its use is common in mechanical engineering, the automotive industry and in applications where quick and easy assembly and disassembly of components is required without the need for special tools.
