Setting ring DIN 705A 12x22x12 galvanized

Product detailed description

The adjusting ring according to DIN 705A, dimensions 12x22x12 mm, is a structural element made of steel, which is electroplated for increased corrosion resistance. This ring is part of the lightweight series and is equipped with an adjusting screw according to DIN 553/ISO 7434, which allows precise positioning on the shaft.

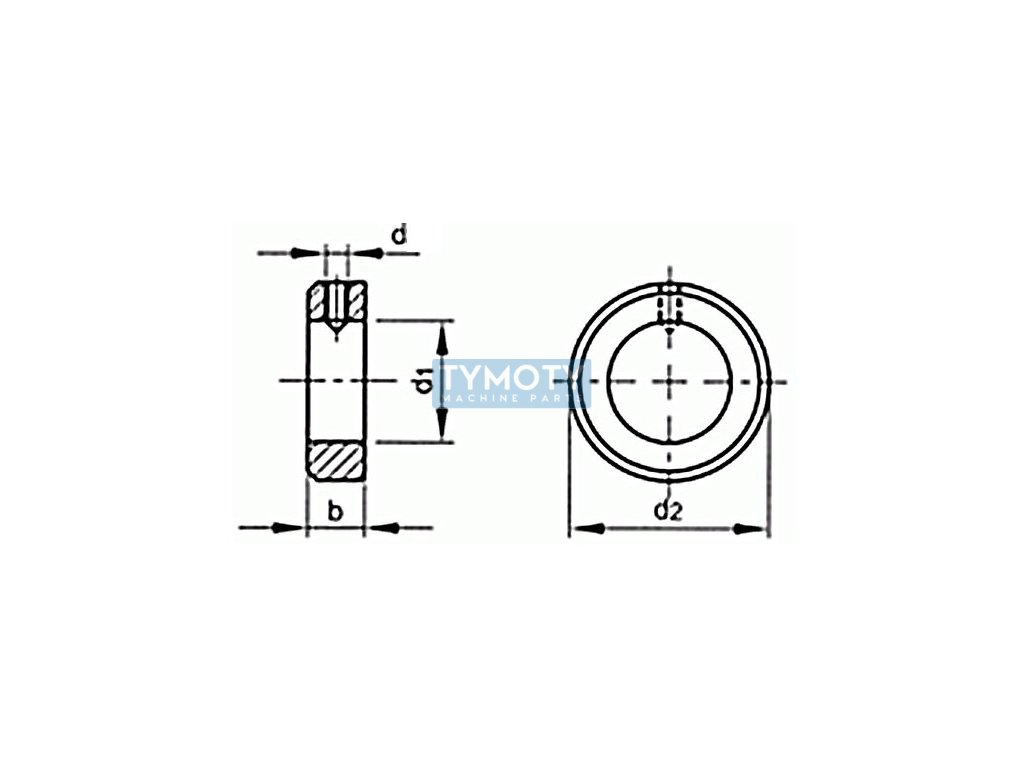

The ring has an outer diameter of 22 mm, an inner diameter of 12 mm and a width of 12 mm. Its zinc-plated surface treatment provides protection against corrosive influences, thereby extending its service life in demanding operating conditions. It is mainly used in mechanical systems to fix the position of components on the shaft, where precise and reliable locking is required.

This component is suitable for applications where quick and easy assembly and disassembly without the need for special tools is required. Thanks to its design and material properties, it is ideal for use in various industrial sectors, including mechanical engineering and equipment manufacturing. The adjusting ring according to ČSN 022910 and DIN 705A is a universal element that guarantees high reliability and accuracy in applications where stability and strength of the connection are important.
