Set screw with socket-hex DIN 916 M8x30

Product detailed description

The DIN 916 M8x30 Allen socket set screw is a precision machined connecting component designed for the firm fixation of parts in mechanical assemblies. This type of screw is equipped with an internal hexagon, which allows for easy and efficient tightening using an Allen key. The screw is manufactured according to the DIN 916 standard, which is equivalent to ISO 4029 and ČSN 021192, which guarantees its compatibility and standardization within international applications.

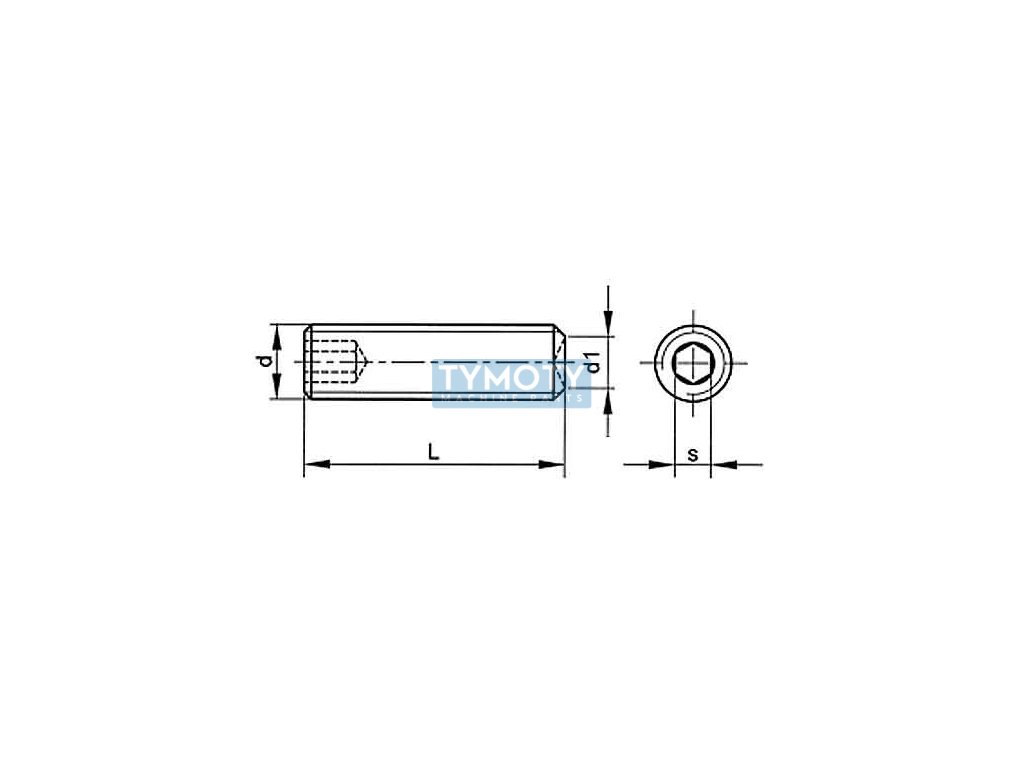

The screw has a metric thread with a diameter of M8 and a pitch of 1.25 mm, which is a common size for applications requiring a reliable and firm connection. The length of the screw is 30 mm, which allows it to be used in various design situations. The diameter D of the hole is 5 mm and the width B1 is 4 mm, which are important dimensions for the correct seating and function of the screw in the assembly.

It is made of 45H steel, which provides high resistance to mechanical stress and ensures a long service life even under higher loads. The surface treatment is not applied, which is suitable for applications where additional corrosion protection or aesthetic modifications are not required.

This set screw is ideal for applications where precise adjustment and fixation of parts is required, such as adjustment mechanisms, shaft mounting or other rotating components. Its design with a tapered hole allows for a secure and stable fit, minimizing the risk of loosening due to vibration or dynamic loading.
