Set screw with socket-hex DIN 916 M5x5

Product detailed description

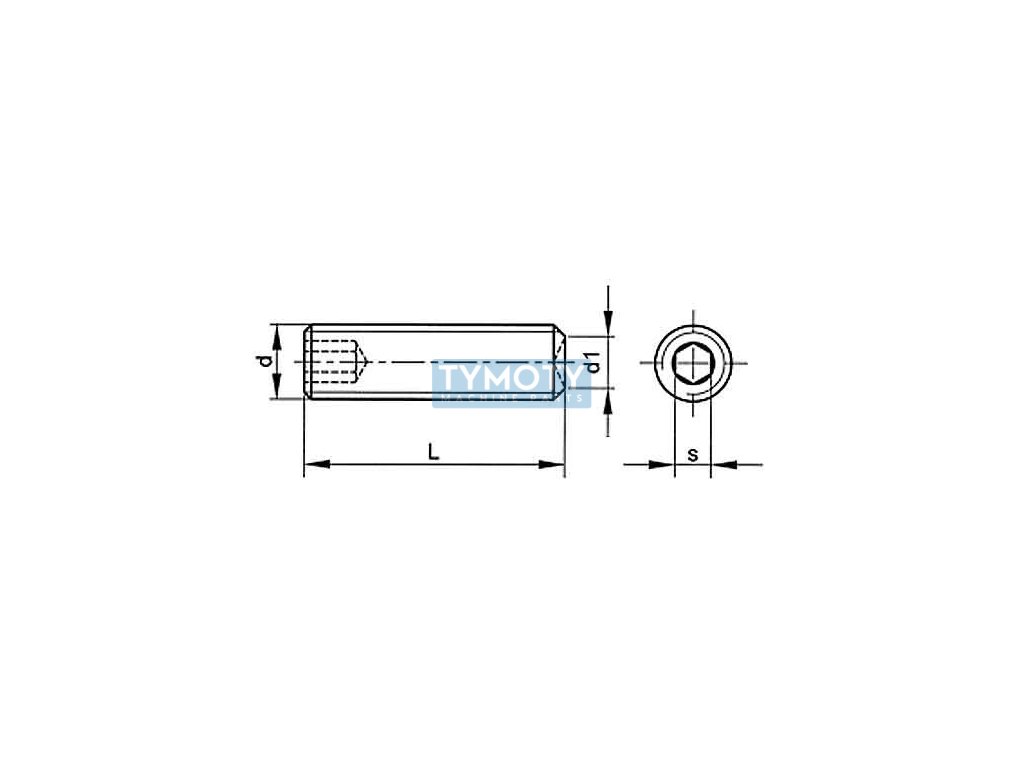

The set screw with internal hexagon and conical hole, manufactured according to DIN 916, ISO 4029 and ČSN 021192 standards, is designed for firmly fixing parts in applications with higher loads. This screw has a metric thread with a diameter of M5 and a length of 5 mm, while the thread pitch is 0.80 mm. The internal hexagon allows easy assembly and disassembly using an Allen key, which increases assembly efficiency.

The screw is made of steel of strength class 45H, which guarantees high resistance to mechanical stress. The surface treatment is not applied, which is suitable for applications where additional corrosion protection is not required. The diameter of the conical hole is 2.5 mm, which corresponds to the width B1.

This set screw is ideal for use in machinery where it is necessary to ensure a firm connection of parts without the possibility of their displacement. It is suitable for applications where precise adjustment and fixation of components is required, such as adjustment mechanisms or shaft fastening.
