Set screw with socket-head socket DIN 916 M6x6

Product detailed description

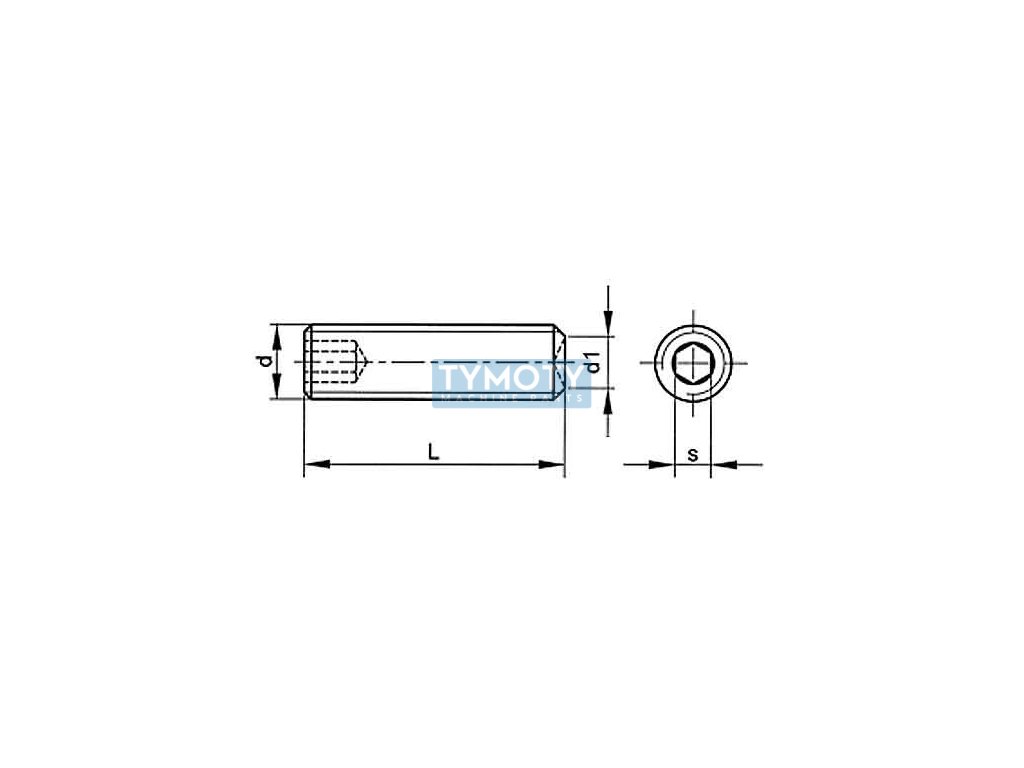

The set screw with internal hexagon and conical hole according to DIN 916, ISO 4029 and ČSN 021192 is designed for firmly fixing parts in applications with higher loads. This screw has a metric thread with a diameter of M6 and a length of 6 mm, while the thread pitch is 1.00 mm. The internal hexagon allows easy assembly and disassembly using an Allen key.

The screw is made of steel of strength class 45H, which guarantees high resistance to mechanical stress. The surface treatment is not applied, which is suitable for applications where additional corrosion protection or aesthetic modifications are not required.

The diameter of the conical hole is 3 mm and the width B1 is also 3 mm, which ensures reliable fixation and minimizes the risk of loosening under dynamic loads. The screw is ideal for use in mechanical engineering where precise and rigid connection of components is required. Thanks to its design, it is suitable for applications where it is necessary to ensure the stability and accuracy of the assembly.
