Set screw with socket head DIN 915 M4x8
Code: 833020
Product detailed description

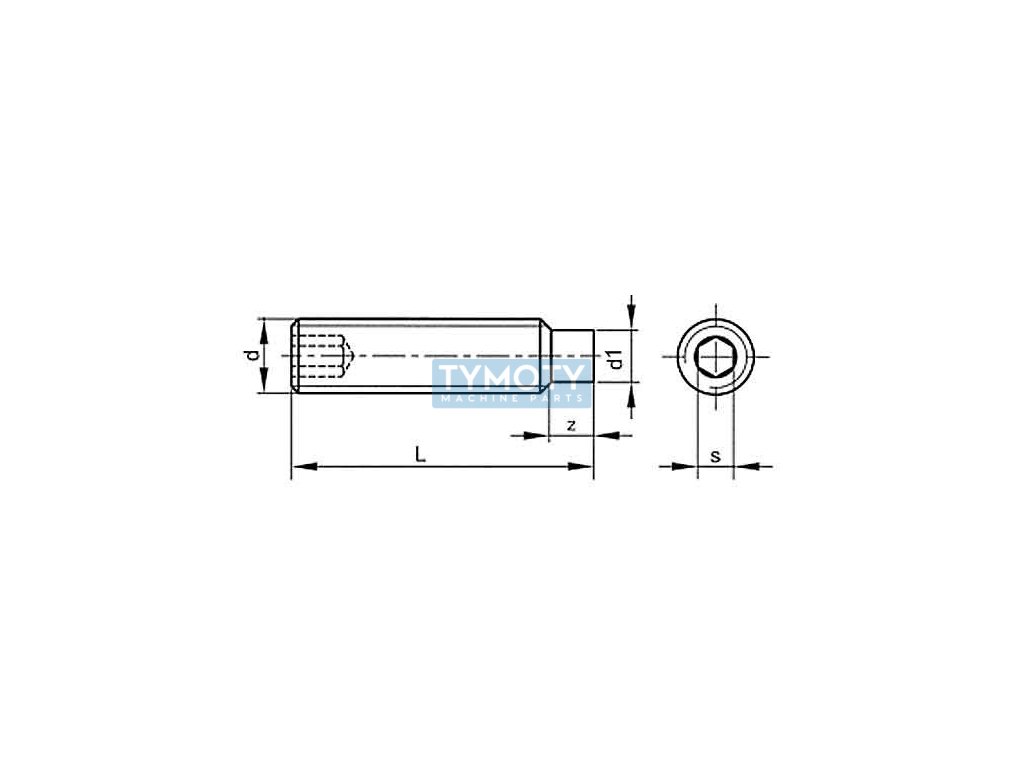

The set screw with a stud and internal hexagon according to DIN 915, ISO 4028 and ČSN 021189 is precisely designed for applications requiring a firm locking of parts in the axis. This screw is ideal for permanent adjustment where it is necessary to maintain the stability and accuracy of the assembly.The screw has a metric thread with a diameter of M4 and a length of 8 mm. The stud diameter is 2.5 mm and the B1 width is 2 mm. The thread has a pitch of 0.70 mm, which ensures fine and precise adjustment. The screw is made of 45H grade steel, which guarantees high strength and resistance to mechanical stress.
The surface finish of the screw is not specified, which indicates that it is supplied without additional surface treatment. This can be advantageous in applications where direct metal-to-metal interaction is required or where the surface finish is secured by other means.
The internal hexagon allows for easy assembly and disassembly using an Allen key, which increases efficiency in assembly and maintenance. The screw is part of the fastener and is suitable for various industrial applications where precise and firm securing of components is required.
Additional parameters
| Category: | Fasteners > screws others > setting, pin-hexagon DIN 915 > steel 45H without treatment |
|---|---|
| EAN: | 4051427283312 |
| CSN standard: | 021189 |
| Diameter D (mm): | M4, 2,5 |
| DIN standard: | 915 |
| EN standard: | 24028 |
| Fortress class: | 45H |
| ISO standard: | 4028 |
| Material: | steel |
| Pitch: | 0,70 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width B1 (mm): | 2 |
