Set screw with socket head DIN 915 M4x10 galvanized
Code: 833178
Product detailed description

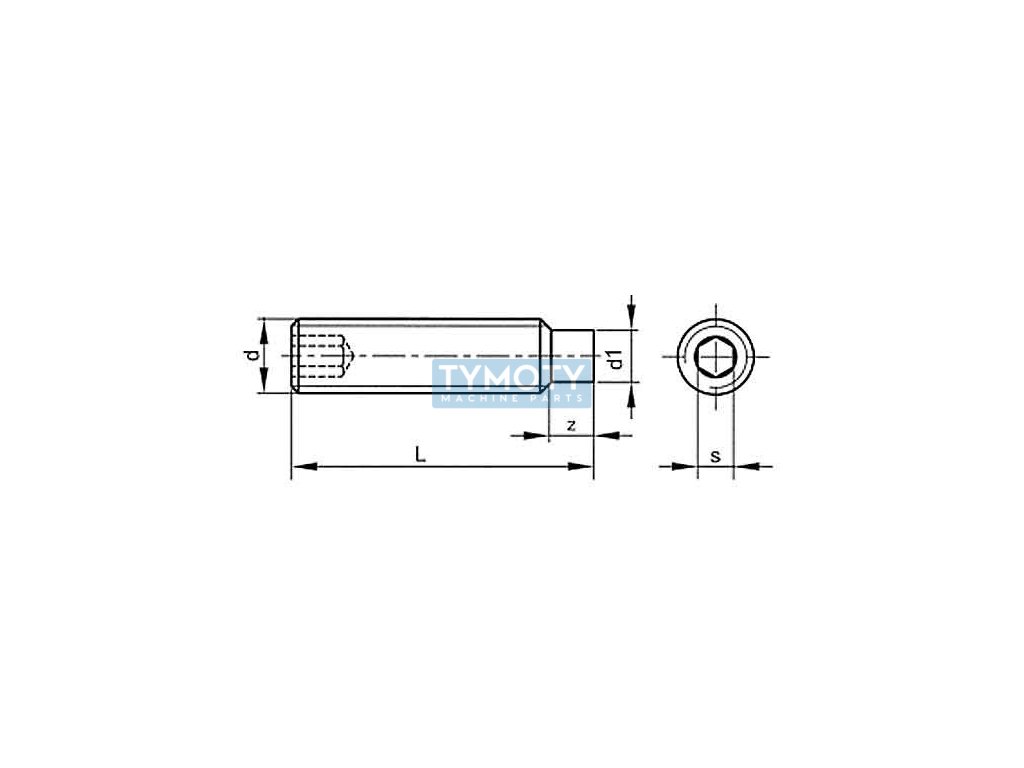

Set screw with internal hexagon and stud, galvanized steel grade 45H ČSN021189-ISO4028-DIN915Additional parameters
| Category: | Fasteners > screws others > setting, pin-hexagon DIN 915 > galvanized steel 45H |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4051427283824 |
| CSN standard: | 021189 |
| Diameter D (mm): | M4, 2,5 |
| DIN standard: | 915 |
| EN standard: | 24028 |
| Fortress class: | 45H |
| ISO standard: | 4028 |
| Length L (mm): | 10 |
| Material: | steel |
| Pitch: | 0,70 |
| Surface finish: | zinc white |
| Thread type: | metric |
| Width B1 (mm): | 2 |
