Set screw with socket head DIN 915 M16x60

Product detailed description

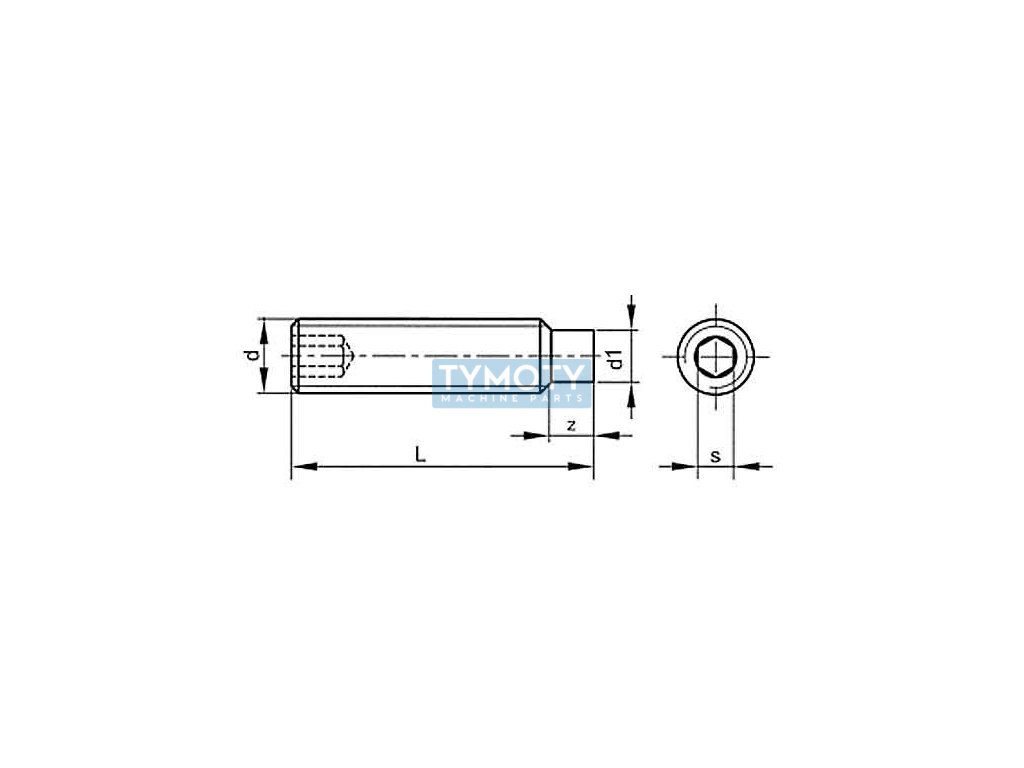

The set screw with a stud and internal hexagon according to DIN 915, ISO 4028 and ČSN 021189 is designed to firmly secure parts in the axis, ideal for permanent adjustment. This component is made of steel grade 45H, which guarantees high strength and resistance to mechanical stress. The screw has a metric thread with a diameter of M16 and a length of 60 mm, while the thread pitch is 2.00 mm. The stud diameter is 12 mm and the width B1 is 8 mm, which provides a precise and stable fit.

The internal hexagon allows easy assembly and disassembly using an Allen key, which increases installation efficiency. The surface treatment is not applied, which means that the screw is in a raw state, suitable for applications where additional corrosion protection is not required.

This set screw is part of the fastening material used in various industrial sectors where it is necessary to ensure a firm and precise connection of components. It is ideal for applications where it is necessary to secure parts in an axis without the possibility of their displacement or rotation. The screw is suitable for use in mechanical engineering, equipment construction and other technical applications where high demands are placed on the accuracy and reliability of the connections.
