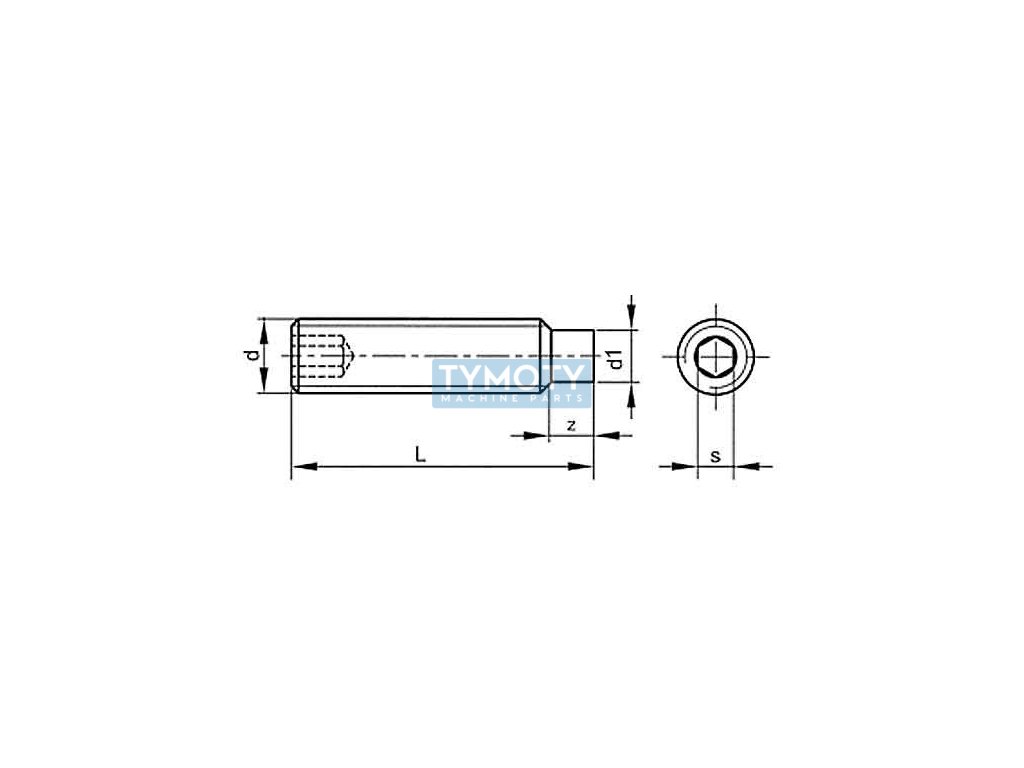

Set screw with socket head DIN 915 M16x25
Code: 833111
Product detailed description
Set screw with internal hexagon and stud M16x25, steel grade 45H ČSN021189-ISO4028-DIN915.Additional parameters
| Category: | Fasteners > screws others > setting, pin-hexagon DIN 915 > steel 45H without treatment |
|---|---|
| Weight: | 0.023 kg |
| EAN: | 4043952200483 |
| CSN standard: | 021189 |
| Diameter D (mm): | M16, 12 |
| DIN standard: | 915 |
| EN standard: | 24028 |
| Fortress class: | 45H |
| ISO standard: | 4028 |
| Material: | steel |
| Pitch: | 2,00 |
| Surface finish: | without modification |
| Thread type: | metric |
| Width B1 (mm): | 8 |
