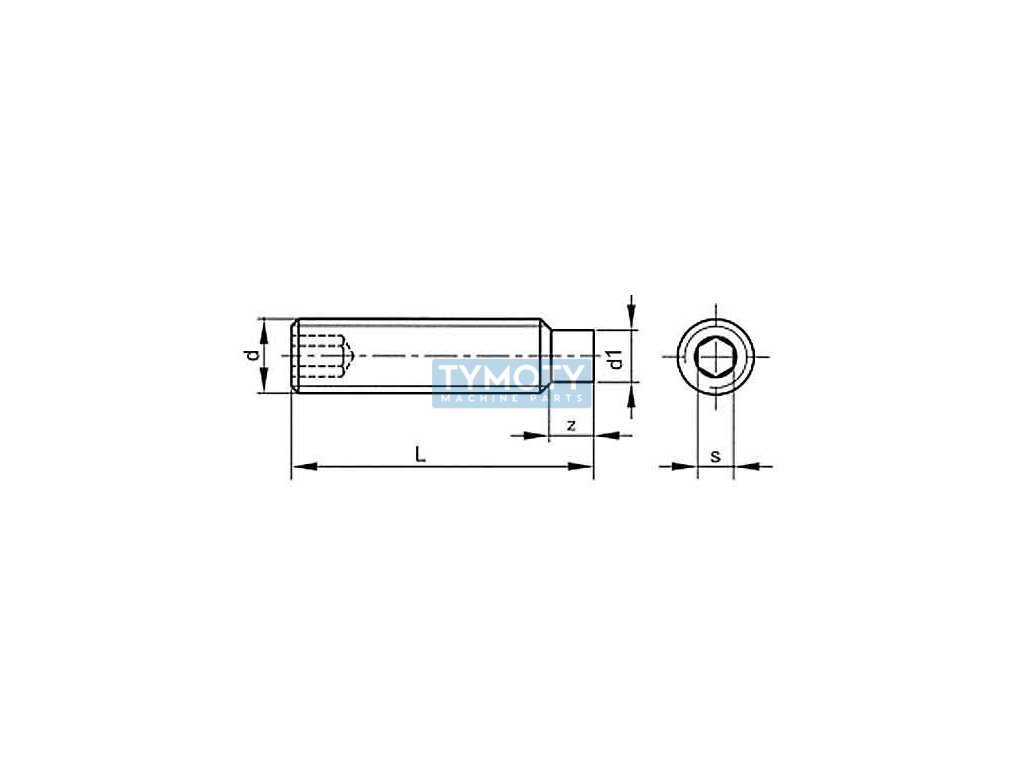

Set screw with socket head DIN 915 M14x30

Product detailed description

The M14x30 set screw with a pin and internal hexagon is manufactured according to DIN 915, ISO 4028 and ČSN 021189 standards. This component is a fastener designed to firmly secure parts in the axis, which makes it ideal for applications where permanent adjustment is required. The screw has a metric thread with a diameter of M14 and a pitch of 2.00 mm, which guarantees a precise and firm connection.

The screw is structurally equipped with an internal hexagon, which allows easy assembly and disassembly using an Allen key. The pin at the end of the screw ensures a stable hold in the material, minimizing the risk of loosening or displacement.

The material from which the screw is made is 45H grade steel. This strength class guarantees high resistance to mechanical stress and a long service life even in difficult conditions. The surface treatment is not applied, which means that the screw is in a raw state and is therefore suitable for applications where corrosion protection is not required.

The total length of the screw is 30 mm, while the width of the internal hexagon is 6 mm. This screw is suitable for use in various industrial sectors where it is necessary to ensure a strong and reliable connection of components.
