Self-tapping screw in steel DIN 938 M16x55-8.8 galvanized

Product detailed description

The steel self-tapping screw according to DIN 938 with dimensions M16x55 is designed for fixed connections in steel and blind holes. This component is made of steel with a strength class of 8.8, which guarantees high mechanical resistance and reliability in demanding applications. The surface treatment is made with white zinc plating, which provides protection against corrosion and extends the life of the screw in aggressive environments.

The screw has a metric thread with a diameter of M16 and a pitch of 2.00 mm, which is standard for this type of thread. The total length of the screw is 55 mm, while the thread length is 38 mm. This design allows for effective load distribution and a firm hold in the material. The screw design includes a thread on both ends, with the longer end intended for screwing into the material, while the shorter end with a chamfer is ready for fastening the nut.

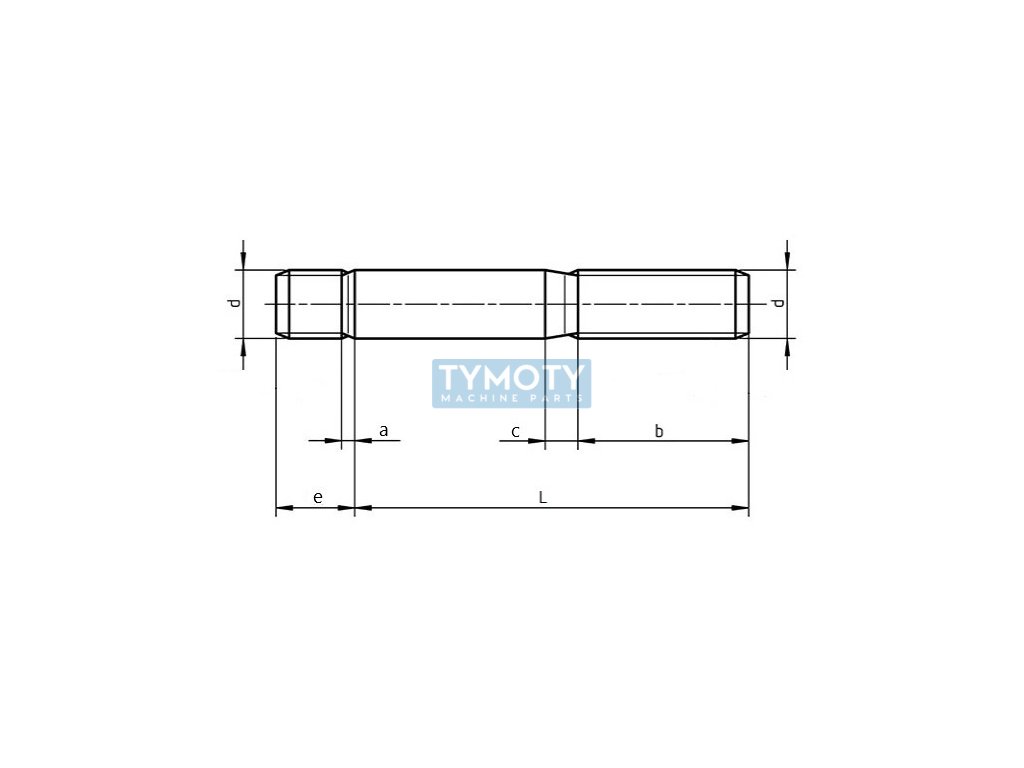

The width c is 5 mm, the width e is 16 mm and the width a is 2.5 mm, which are important dimensions for correct fit and functionality in structural applications. The screw is suitable for use in various industrial sectors where it is necessary to ensure a strong and reliable connection of components. The ČSN 021174 standard is equivalent to the DIN 938 standard, which guarantees compatibility and standardization within European markets.
