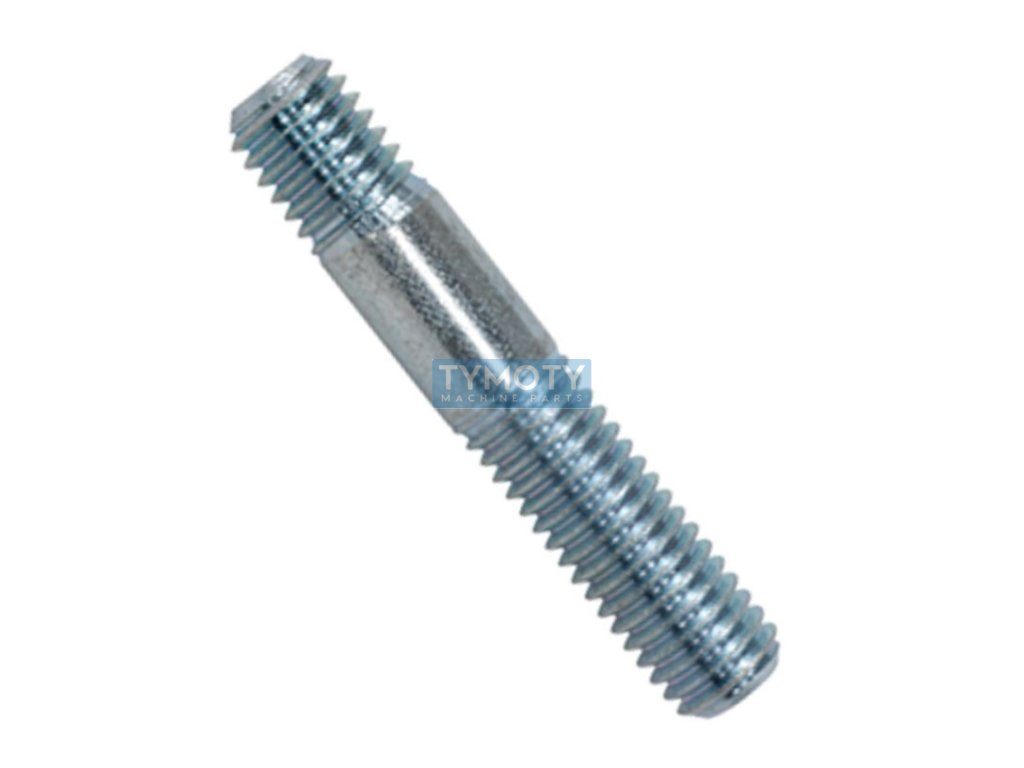

Self-tapping screw in steel DIN 938 M10x40-8.8 galvanized

Product detailed description

The steel self-tapping screw according to DIN 938 with dimensions M10x40 is intended for creating solid connections in steel, especially in blind holes. This screw is made of steel with a strength class of 8.8, which means that it has a yield strength of 640 MPa and a minimum tensile strength of 800 MPa. These properties make it suitable for use in applications where high mechanical resistance is required.

The screw has a metric thread with a diameter of M10 and a pitch of 1.5 mm. The total length of the screw is 40 mm, while the length of the thread on the longer end, intended for screwing in, is 26 mm. The shorter end is provided with a chamfer, which facilitates the insertion of the nut and ensures a solid connection.

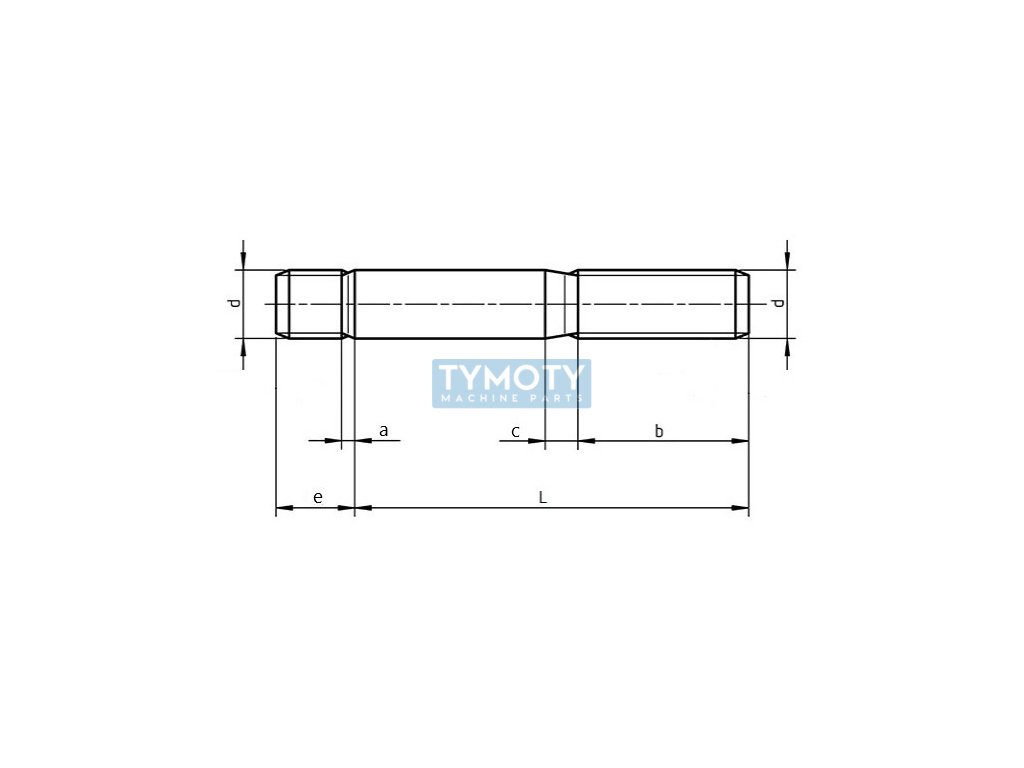

The surface treatment of the screw is made with white zinc plating, which provides protection against corrosion and increases the service life of the component in harsh conditions. The width c is 3.8 mm, the width e is 10 mm and the width a is 1.9 mm, which are important dimensions for precise fit and functionality in mechanical assemblies.

This stud bolt is suitable for use in various industries where reliability and durability of connections are required, such as mechanical engineering, automotive and construction.
