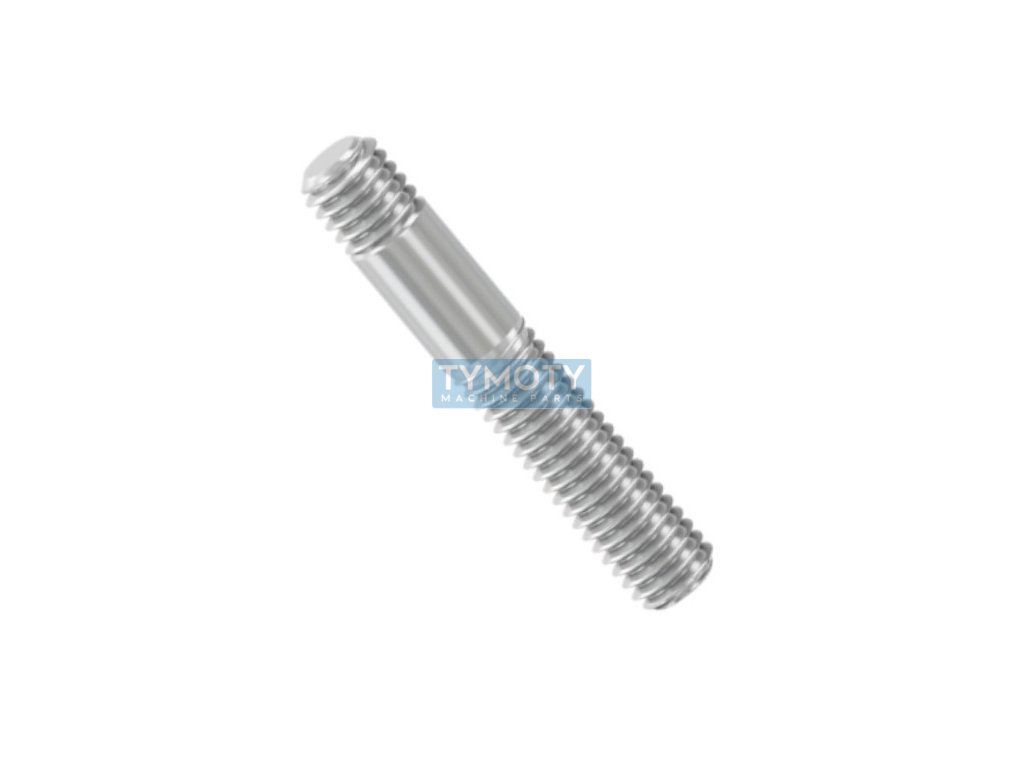

Self-tapping screw for steel DIN 938 M12x35 stainless steel A4
Code: 895763Product detailed description

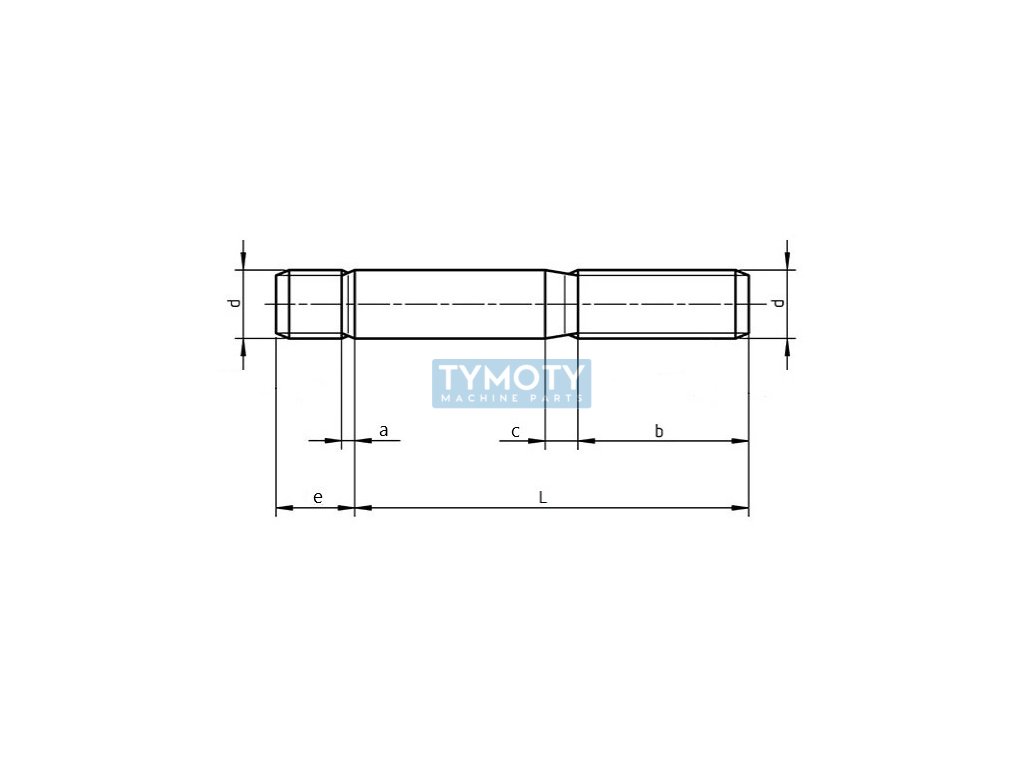

The DIN 938 steel self-tapping screw with dimensions M12x35 is made of A4 stainless steel, which guarantees high corrosion resistance and is suitable for use in harsh environments, including the chemical industry and marine environments. This screw is designed for fixed connections in steel and is ideal for blind hole applications where a reliable and permanent connection is required.The screw has a metric thread with a diameter of M12 and a pitch of 1.75 mm. The total length of the screw is 35 mm, while the thread length is 30 mm. The thread is located on both ends of the screw, with one end being longer for screwing into the material and the other shorter with a chamfer for fastening the nut. The width c is 4.3 mm, the width e is 12 mm and the width a is 2.2 mm.
The screw has no surface treatment, which is typical for stainless steel materials that naturally resist corrosion. The ČSN 021174 standard is equivalent to the DIN 938 standard, which guarantees compatibility and standardization within European markets. This component is part of the threaded rod group and is often used in mechanical engineering, construction and equipment manufacturing, where high strength and resistance to external influences are required.
Additional parameters
Category: | Fasteners > screws others > screw for DIN 938 steel > stainless steel A4 |
---|---|
Weight: | 0.034 kg |
EAN: | 4043952302309 |
Diameter D (mm): | M12 |
DIN standard: | 938 |
