Self-tapping screw for steel DIN 938 M10x30-8.8

Product detailed description

The DIN 938 steel stud bolt with dimensions M10x30 is designed for fixed connections in steel, especially in blind hole applications. This type of bolt has a thread on both ends, with the longer thread designed for screwing into the material, while the shorter thread with a chamfer is prepared for fastening a nut.

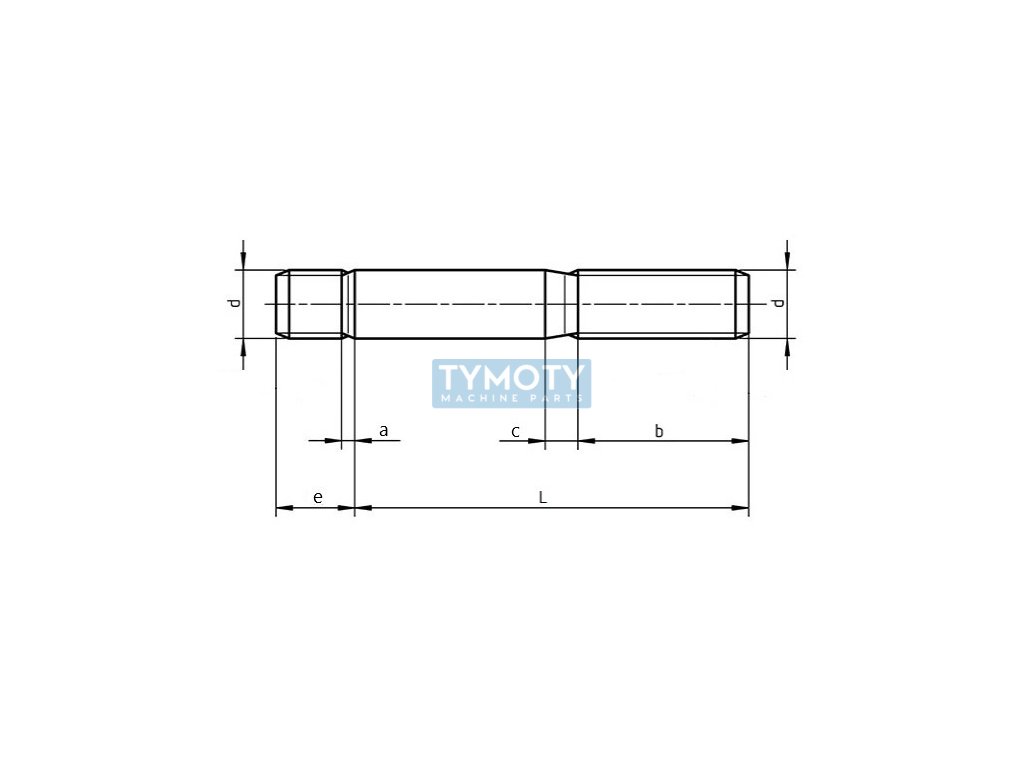

The bolt has a metric thread with a diameter of M10 and a pitch of 1.5 mm. The total length of the bolt is 30 mm, while the thread length is 26 mm. The width c is 3.8 mm, the width e is 10 mm and the width a is 1.9 mm. The bolt is made of steel with a strength class of 8.8, which guarantees high strength and resistance to mechanical stress. The surface treatment is not applied, which means that the screw is supplied without a surface treatment, which can be important for applications where further processing or specific surface treatments are required according to project requirements.

This screw is ideal for use in structures where a strong and reliable connection is required, while its design allows for easy assembly and disassembly in case of maintenance or component replacement. It is suitable for use in various industries where high strength and reliability of connections are required.
