Self-tapping screw for cast iron DIN 939 M10x35 stainless steel A2

Product detailed description

The DIN 939 cast iron stud bolt with dimensions M10x35 is made of A2 stainless steel, which is known for its corrosion resistance and suitability for use in aggressive environments. This component is designed for fixed connections in blind holes, which means that it is ideal for applications where it is necessary to ensure a reliable and permanent connection without the screw penetrating the other side of the material.

The screw has a metric thread with a diameter of M10 and a pitch of 1.5 mm, which is a standard size for this type of fastener. The total length of the screw is 35 mm, while the thread length b is 26 mm. This parameter determines how deep the screw can be screwed into the material, which is important for ensuring sufficient strength of the connection.

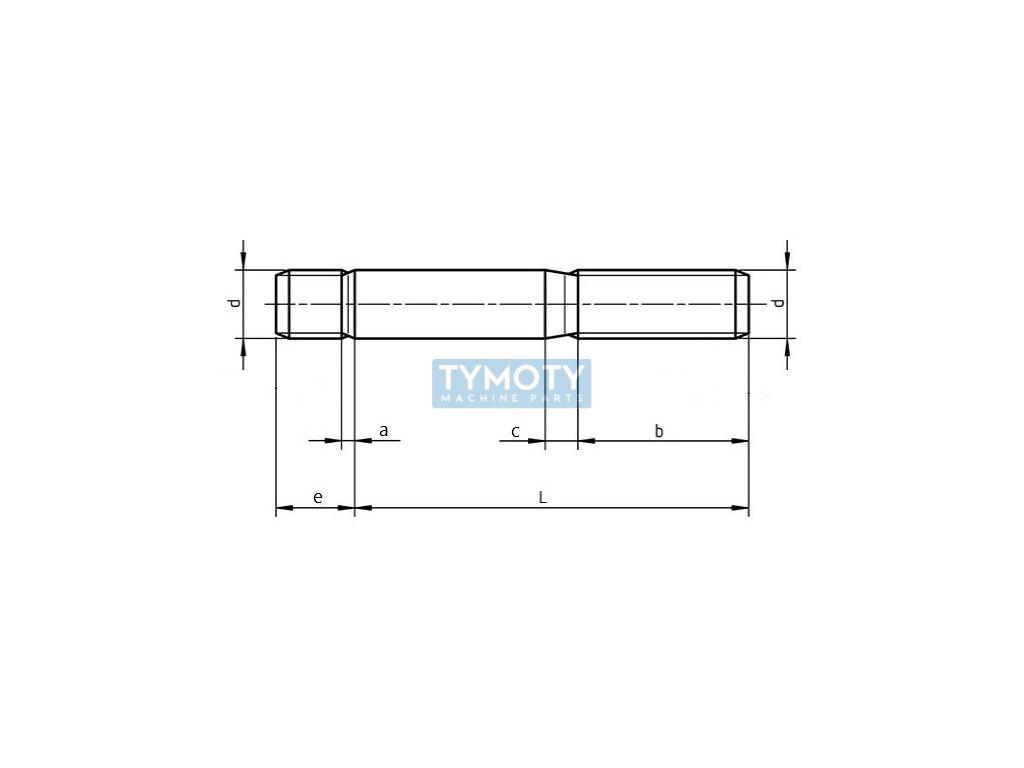

The screw design includes two threaded parts: a longer part designed for screwing into cast iron and a shorter part used for mounting other parts. The width c is 3.8 mm, the width e is 12 mm and the width a is 1.9 mm, which are dimensions that determine the exact geometric properties of the screw and its compatibility with other components.

The screw has no surface treatment, which is common for stainless steel materials, as their natural resistance to corrosion eliminates the need for additional protective layers. The strength class A2 guarantees high mechanical strength and resistance to chemical influences, making this screw suitable for a wide range of industrial applications.
