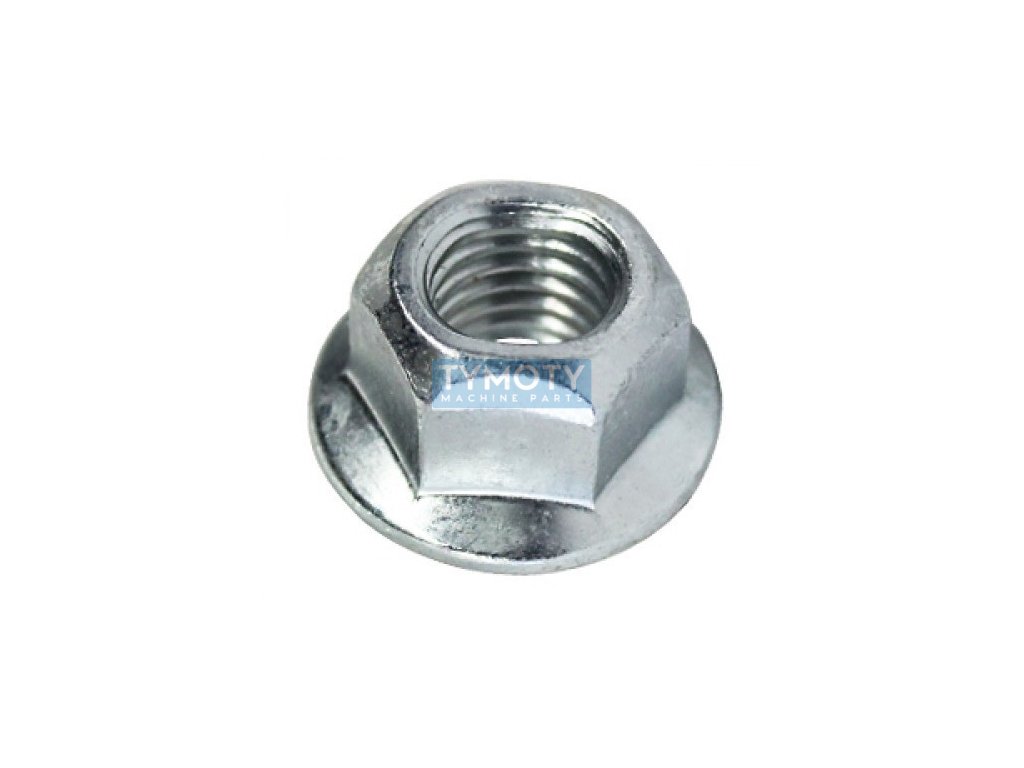

Self-locking nut with collar DIN 6927 M5 |08| zinc

Product detailed description

The self-locking nut with collar according to DIN 6927 is made of steel with a strength class of 8, which guarantees high mechanical resistance and reliability in various applications. This nut has a metric thread M5 with a pitch of 0.80 mm, which is a standard thread type used in many industries. The all-metal construction of the nut includes a deformed thread that provides a self-locking function, effectively preventing the joint from loosening due to vibrations or dynamic loads.

The nut is equipped with a collar that increases the contact surface, which improves the pressure distribution on the materials being joined and reduces the risk of surface damage. The external hexagonal shape with a width dimension of 8 mm allows for easy assembly using standard tools. The total height of the nut is 6.2 mm, while the collar diameter d1 is 11.8 mm, which provides sufficient stability and strength in the connection.

The surface treatment of the nut is made with white zinc plating, which provides protection against corrosion and increases the service life of the component in harsh conditions. This treatment is suitable for applications where the nut is exposed to moisture or other corrosive environments.

The nut complies with DIN 6927 and EN 1664 standards, which guarantees its compatibility and applicability within the framework of European fastener standards. It is ideal for use in mechanical engineering, the automotive industry and other areas where high strength and reliability of connections are required.
