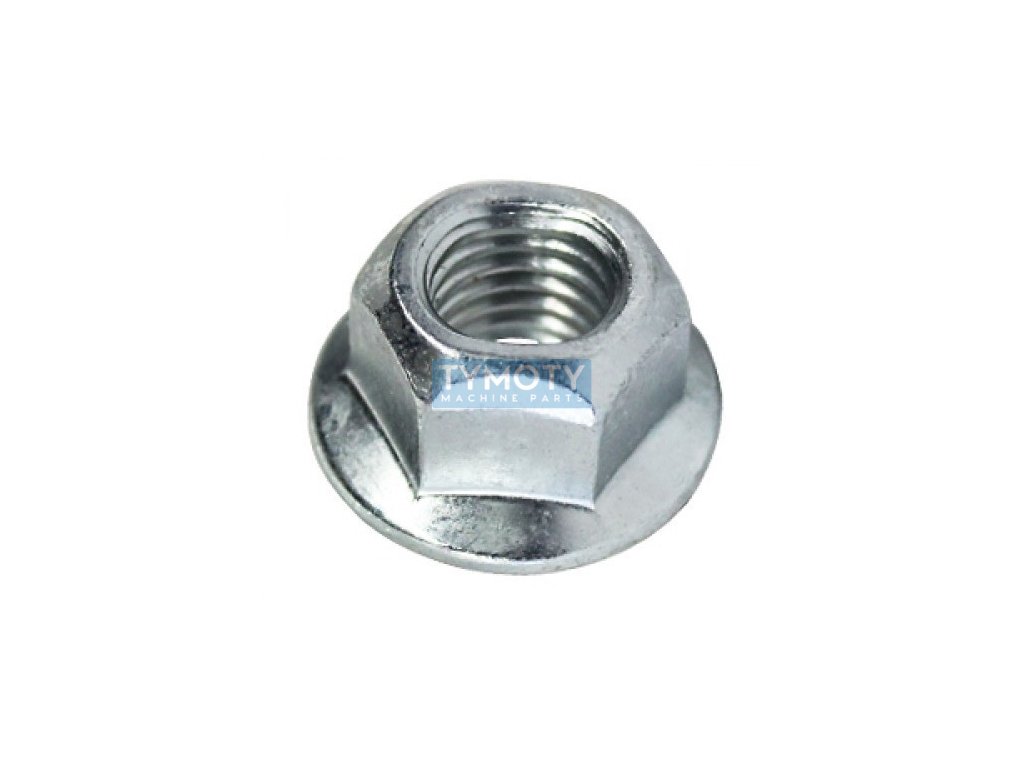

Self-locking nut with collar DIN 6927 M10 |08| zinc

Product detailed description

The self-locking collar nut according to DIN 6927 is technically designed to ensure a strong and reliable connection in various industrial applications. This nut has a metric M10 thread with a pitch of 1.50 mm, which is a standard size for a wide range of applications. It is made of steel with a strength class of 8, which guarantees high resistance to mechanical stress.

The all-metal construction of the nut includes a deformed thread that provides a self-locking function, minimizing the risk of spontaneous loosening of the connection due to vibrations or dynamic loads. The collar, which is part of the design, increases the contact surface of the nut, thereby increasing the stability of the joint and evenly distributing the pressure on the material, thereby reducing the risk of surface damage.

The nut has a hexagonal shape with a width between the surfaces (s) of 15 mm and a width between the diagonals (e) of 16.64 mm, which allows easy manipulation using standard tools. The height of the nut is 11.4 mm and the diameter of the collar (d1) is 21.8 mm, which provides sufficient contact surface for stable fastening.

The surface treatment is carried out by galvanizing, which provides protection against corrosion and increases the service life of the nut even in difficult conditions. This treatment is known as white zinc plating, which is a standard process for improving resistance to external influences.

This nut is ideal for applications where a permanent and secure connection is required, while its design features allow for use in a wide range of industries.
