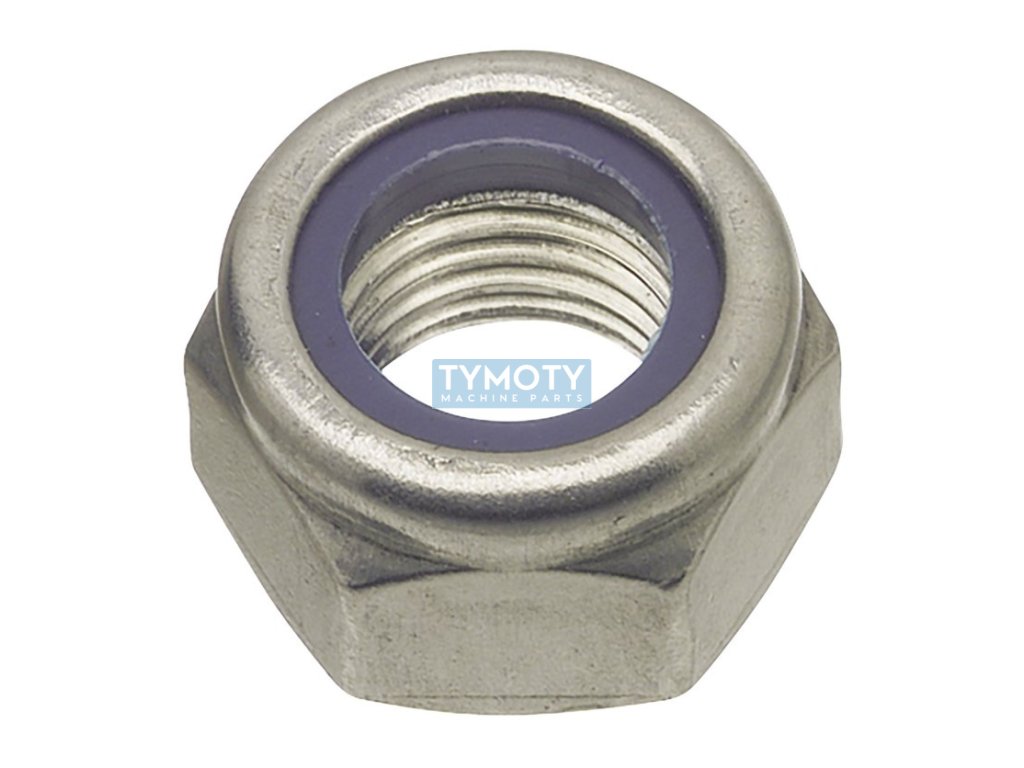

Self-locking nut DIN 985 M6 stainless steel A4

Product detailed description

The self-locking low nut DIN 985 M6 made of A4 stainless steel is a hexagonal connecting component designed for applications where it is necessary to ensure a reliable connection resistant to vibration and dynamic loads. This nut is equipped with a nylon insert, which serves as a mechanism against self-loosening. The nylon insert increases the friction between the nut and the bolt, thus ensuring the strength of the connection even when exposed to external forces.

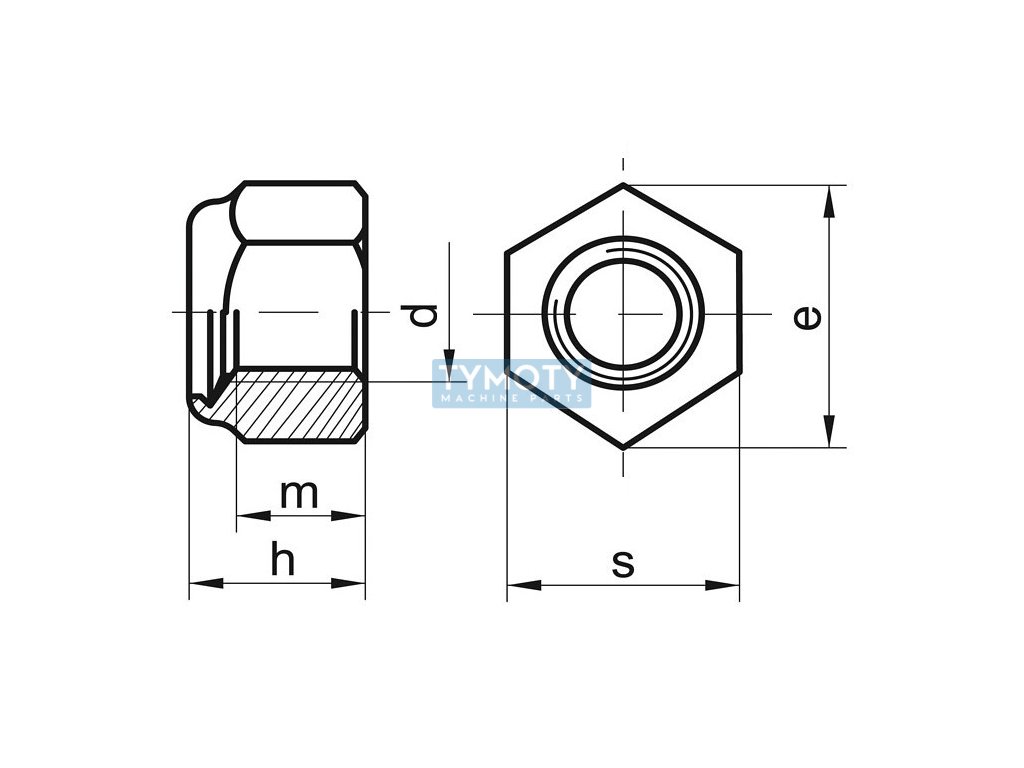

The nut has a metric thread with a diameter of M6 and a pitch of 1.00 mm, which is standard for this type of thread. The height of the nut is 6 mm, while the height of the hexagon itself is 4 mm. The width between the hexagon faces is 10 mm and the width between opposite corners is 11.05 mm. These dimensions are in accordance with DIN 985, ISO 10512 and ČSN 021492, which guarantees compatibility with other components manufactured according to these standards.

The material of the nut is stainless steel grade A4, which provides high corrosion resistance, even in aggressive environments such as marine or chemical environments. This property is particularly important for applications where the nut is exposed to moisture or chemicals. The surface treatment is not applied, which is common for stainless steel materials that naturally resist corrosion.

This nut is ideal for use in industrial applications where joints are exposed to high mechanical loads and where it is necessary to ensure long-term reliability of the connection. Thanks to its properties, it is suitable for use in mechanical engineering, construction, the automotive industry and other industries where high demands are placed on the strength and durability of fasteners.
