Self-locking nut DIN 985 M5 stainless steel A2

Product detailed description

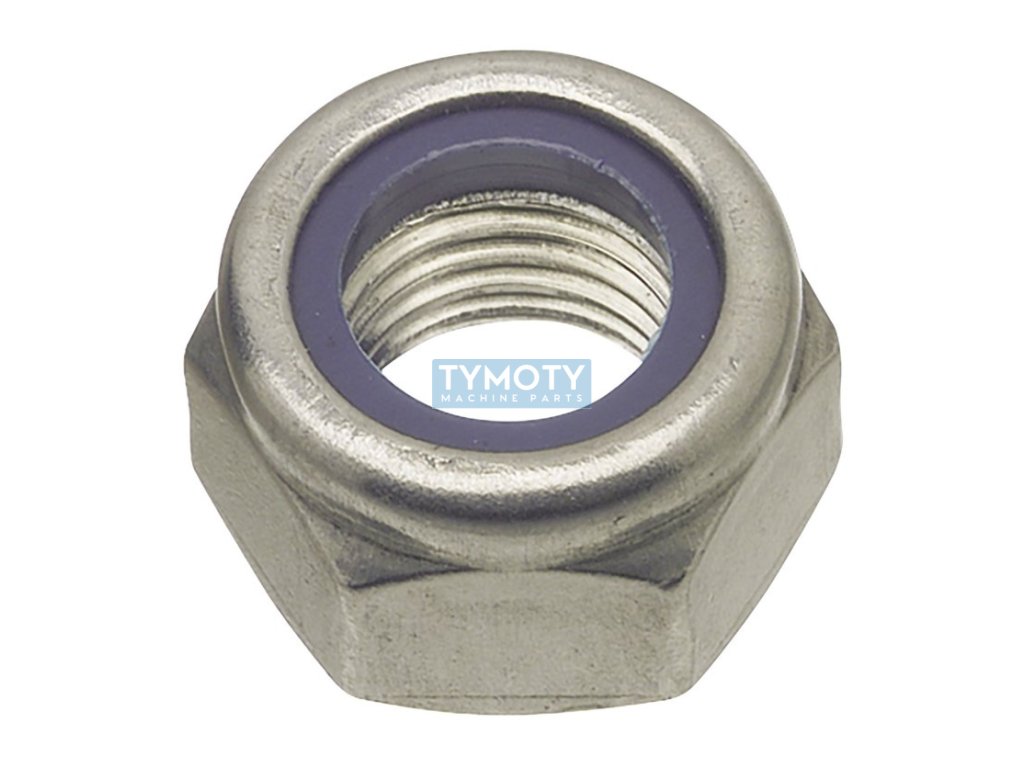

The self-locking low nut DIN 985 M5 made of A2 stainless steel is a hexagonal fastener designed for applications requiring increased resistance to vibration and dynamic loads. This nut is equipped with a nylon insert that ensures a self-locking function, minimizing the risk of the connection loosening.

The nut is manufactured according to DIN 985, ISO 10512 and ČSN 021492 standards, which guarantees its compatibility and standardization within international use. Its metric M5 thread has a pitch of 0.80 mm, which is common for this type of thread and allows for a precise and solid connection.

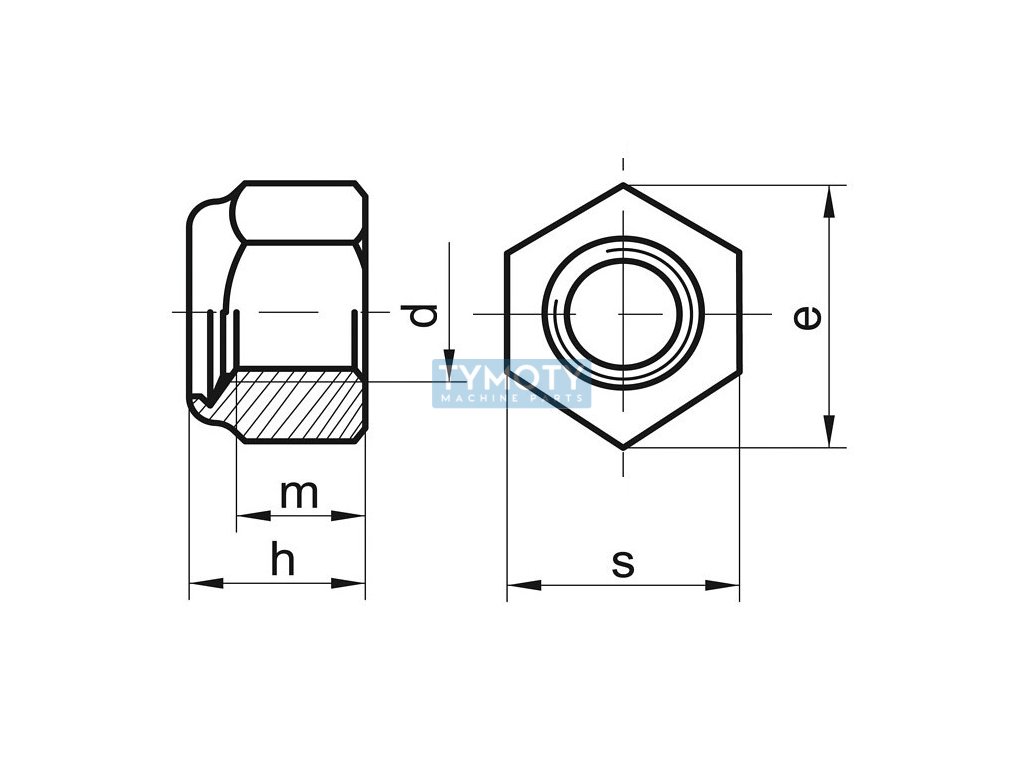

The dimensions of the nut are as follows: height h is 5 mm, height m is 3.2 mm, width s is 8 mm and width e is 8.79 mm. These dimensions are optimized for the low profile of the nut, allowing it to be used in space-constrained applications.

The A2 stainless steel material provides excellent corrosion resistance, making it ideal for use in environments with high humidity or chemical exposure. The nut has no surface treatment, which is typical of stainless steel materials, where it relies on the natural corrosion resistance of the material.

This nut is suitable for a wide range of industrial applications where reliability and safety of connections are required, such as mechanical engineering, the automotive industry, or construction applications.
