Self-locking nut DIN 985 M42x3.00 |08| zinc

Product detailed description

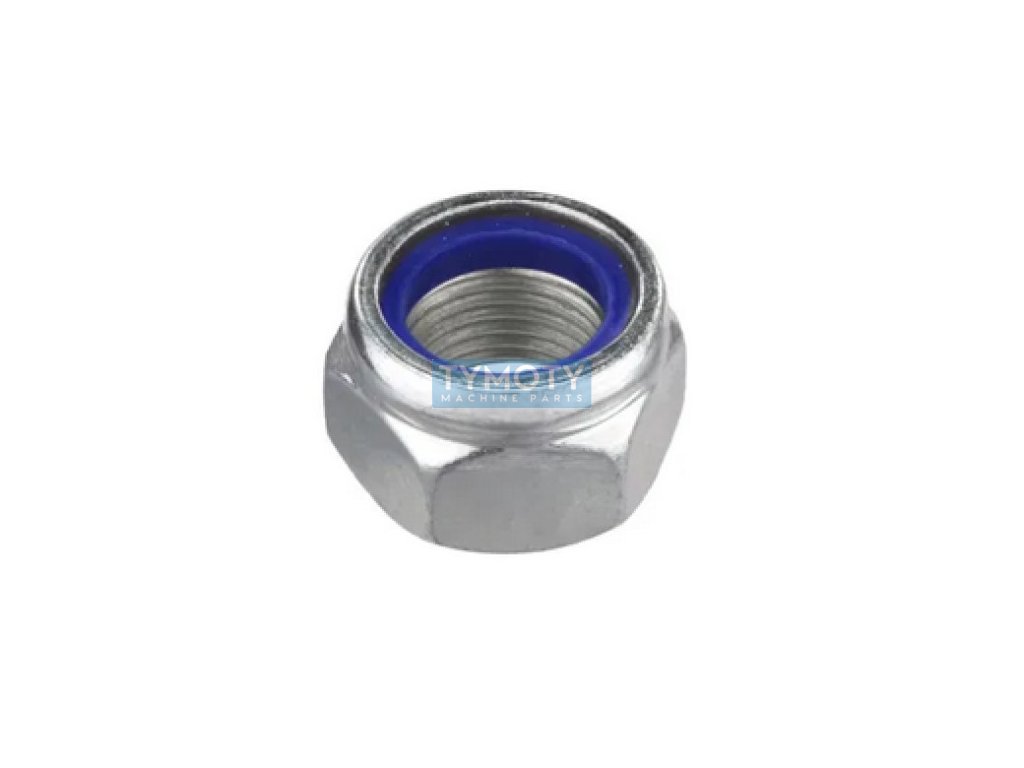

The self-locking low nut according to DIN 985, with dimensions M42x3.00, is made of steel of strength class 8 and surface treated with white zinc plating. This type of nut is hexagonal and contains a nylon insert, which serves as a safeguard against spontaneous loosening of the connection. Thanks to this insert, the nut is ideal for applications where connections are exposed to vibrations and dynamic loads.

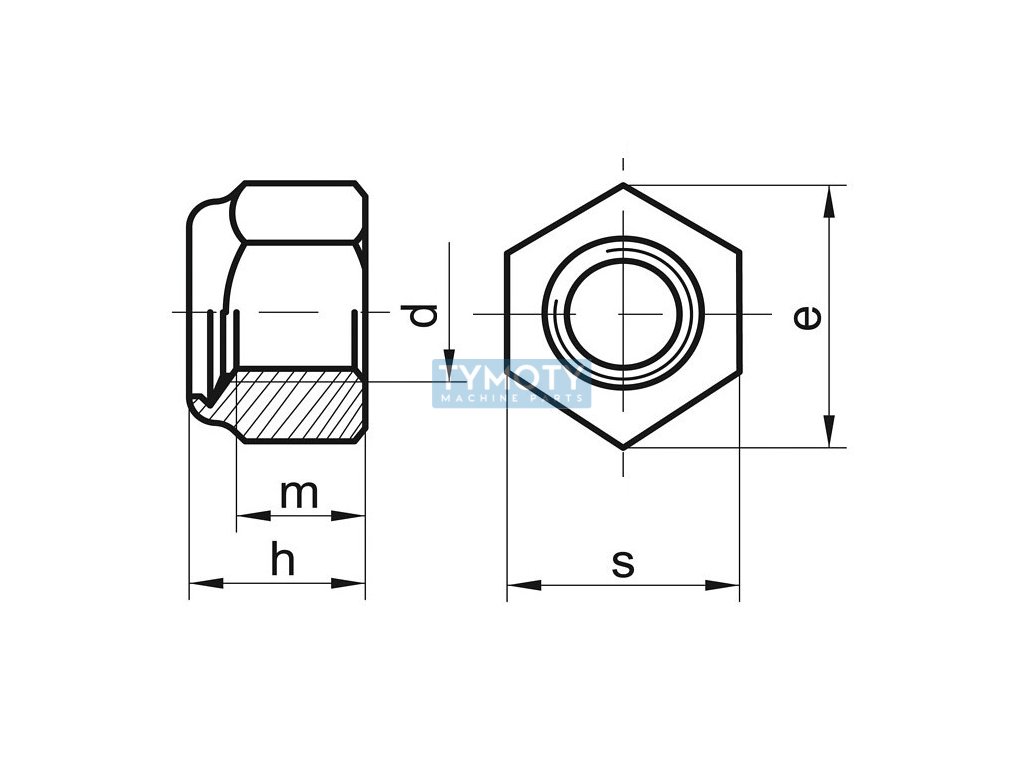

The nut has a metric fine thread with a pitch of 3.00 mm, which guarantees higher precision and strength of the connection compared to conventional threads. The height of the nut is 29 mm, while the total height including the nylon insert is 42 mm. The width between opposing surfaces (s) is 65 mm and the width between diagonals (e) is 71.3 mm.

This nut complies with DIN 985, ISO 10512 and ČSN 021492 standards, which guarantees its compatibility and usability in international applications. Thanks to its design and material properties, it is suitable for use in various industrial sectors where it is necessary to ensure a reliable and durable connection.
