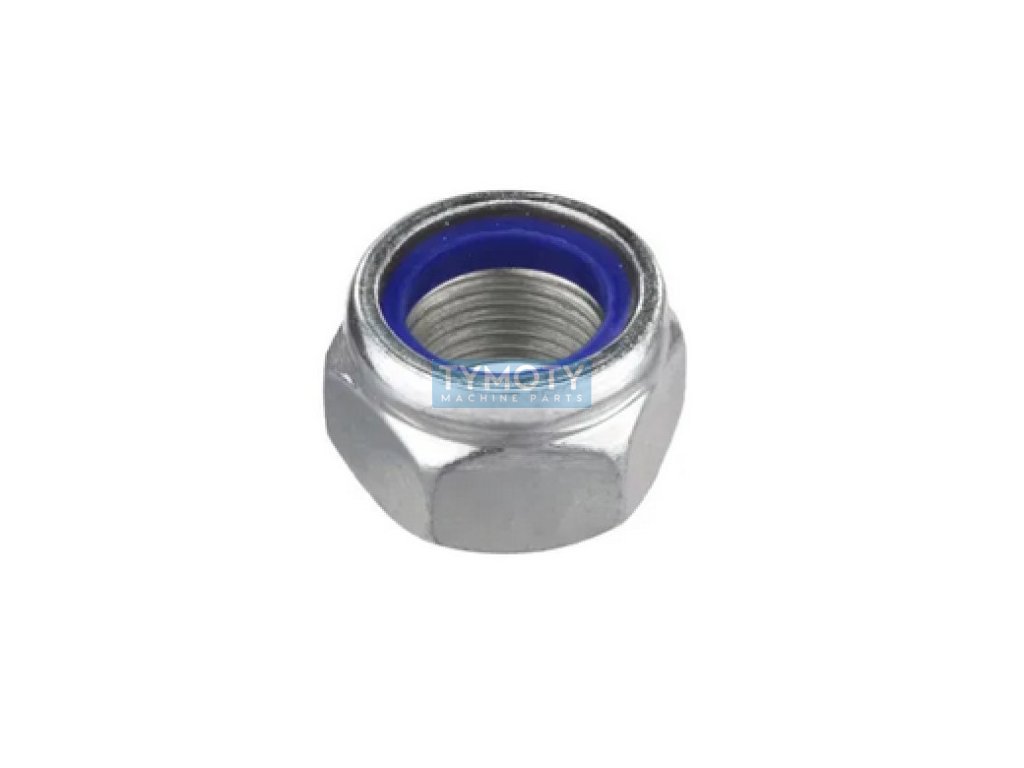

Self-locking nut DIN 985 M10x1.00 |08| zinc

Product detailed description

The low self-locking nut according to DIN 985, with dimensions M10x1.00, is designed as a hexagonal nut with an integrated nylon insert, which ensures its self-locking function. This insert serves to increase the resistance to loosening of the connection, which is particularly important in applications exposed to vibrations and dynamic loads. The nut is made of steel with a strength class of 8, which guarantees its high mechanical resistance and reliability in various industrial applications.

The nut has a metric fine thread with a diameter of M10 and a pitch of 1.00 mm. The height of the nut is 6.5 mm, the width between the surfaces (s) is 17 mm and the width between the diagonals (e) is 18.9 mm. These dimensions are in accordance with DIN 985, ISO 10512 and ČSN 021492, which guarantees compatibility with other components within these standards.

The surface treatment of the nut is made of white zinc, which provides protection against corrosion and increases the service life of the product in difficult operating conditions. This surface treatment is particularly suitable for applications where the nut is exposed to moisture or other corrosive influences.

Thanks to its design features and reliability, this nut is ideal for use in mechanical engineering, the automotive industry and other areas where it is necessary to ensure strong and secure connections.
