Sealing ring CU 33x39x1.5

Product detailed description

The CU 33x39x1.5 sealing ring is a flat copper ring designed for use in detachable sealing joints. This component is made of copper, which guarantees excellent corrosion resistance and good thermal conductivity. The ring is designed according to DIN 7603A and ČSN 02 9310.2, which guarantees its compatibility and quality in accordance with international standards.

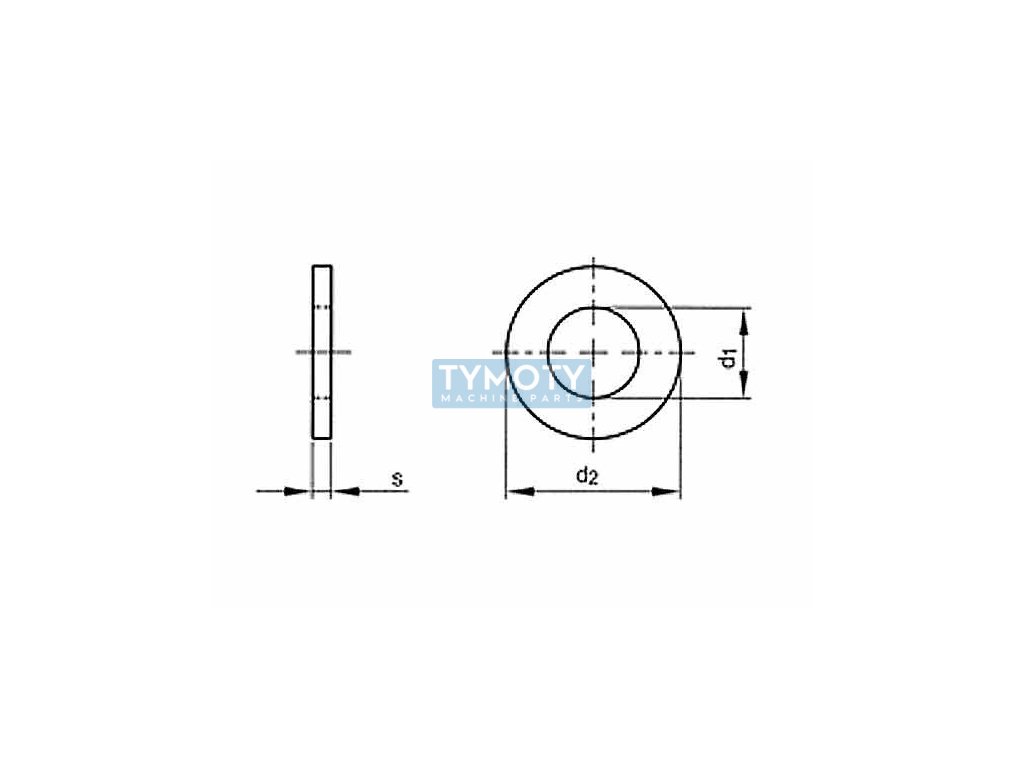

The dimensions of the ring are precisely defined: inner diameter 33 mm, outer diameter 39 mm and thickness 1.5 mm. These dimensions are optimized for effective sealing in applications where it is necessary to ensure tightness between non-moving parts. The ring acts as a compression seal, where its flat shape allows for even pressure distribution and minimizes the risk of media leakage.

The use of this sealing ring is suitable in various industrial sectors, especially where reliable sealing ability is required in detachable connections, such as hydraulic and pneumatic systems. Due to its material properties and design parameters, this ring is ideal for applications where long-term reliability and resistance to high temperatures and pressures are important.
