Sealing ring CU 30x36x2

Product detailed description

The CU 30x36x2 sealing ring is a flat sealing component made of copper that meets the standards DIN 7603A and ČSN 02 9310.2. This ring is designed for use in detachable sealing joints, where it serves as a compression seal between fixed parts. Its main function is to provide a reliable seal, preventing the leakage of liquids or gases at the joints.

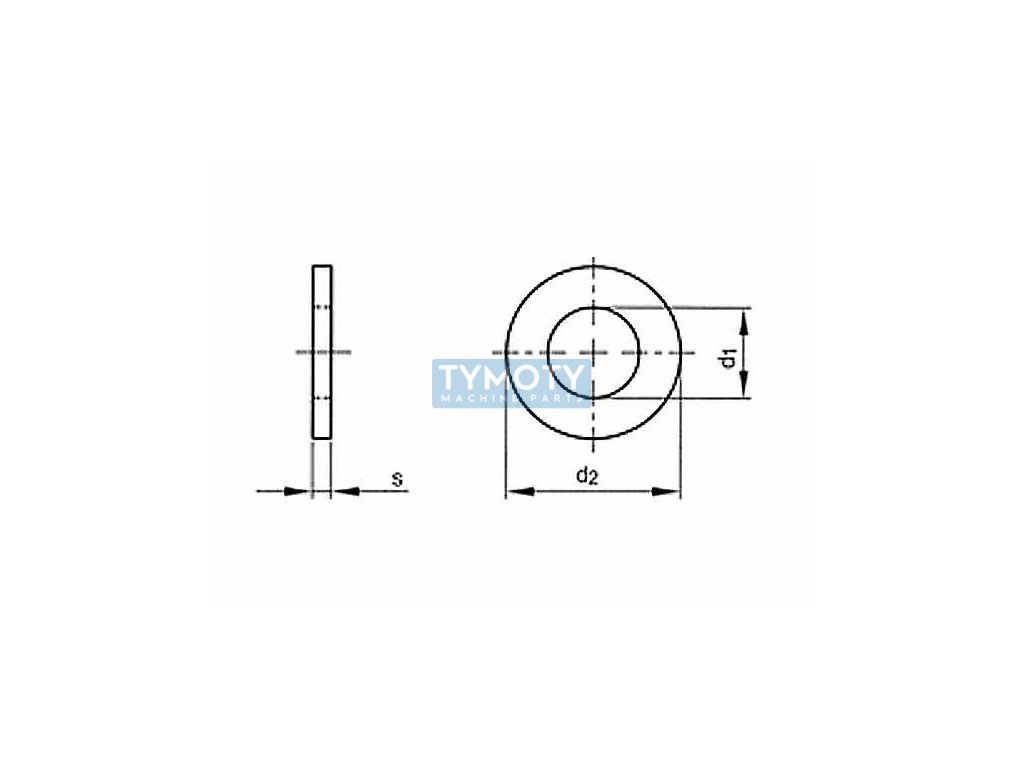

The dimensions of the ring are precisely defined: inner diameter 30 mm, outer diameter 36 mm and thickness 2 mm. These dimensions are critical for proper fit and function in the system where the ring is used. The material from which the ring is made is copper, which is known for its excellent thermal and electrical conductivity, as well as corrosion resistance. These properties make the copper ring suitable for applications where long-term reliability and resistance to chemical influences are required.

The flat shape of the ring allows for even pressure distribution when tightening joints, which increases sealing efficiency. The ring is often used in the automotive industry, hydraulic and pneumatic systems, as well as in various industrial equipment where it is necessary to ensure tightness of joints at high pressures and temperatures.
