Sealing ring CU 12x20x1.5

Product detailed description

The CU 12x20x1.5 sealing ring is a flat sealing component made of copper that meets the standards DIN 7603A and ČSN 02 9310.2. This ring is intended for use in detachable sealing joints, where it serves as a compression seal for fixed parts. Its main function is to provide a reliable seal between two solid surfaces, thus preventing the leakage of liquids or gases.

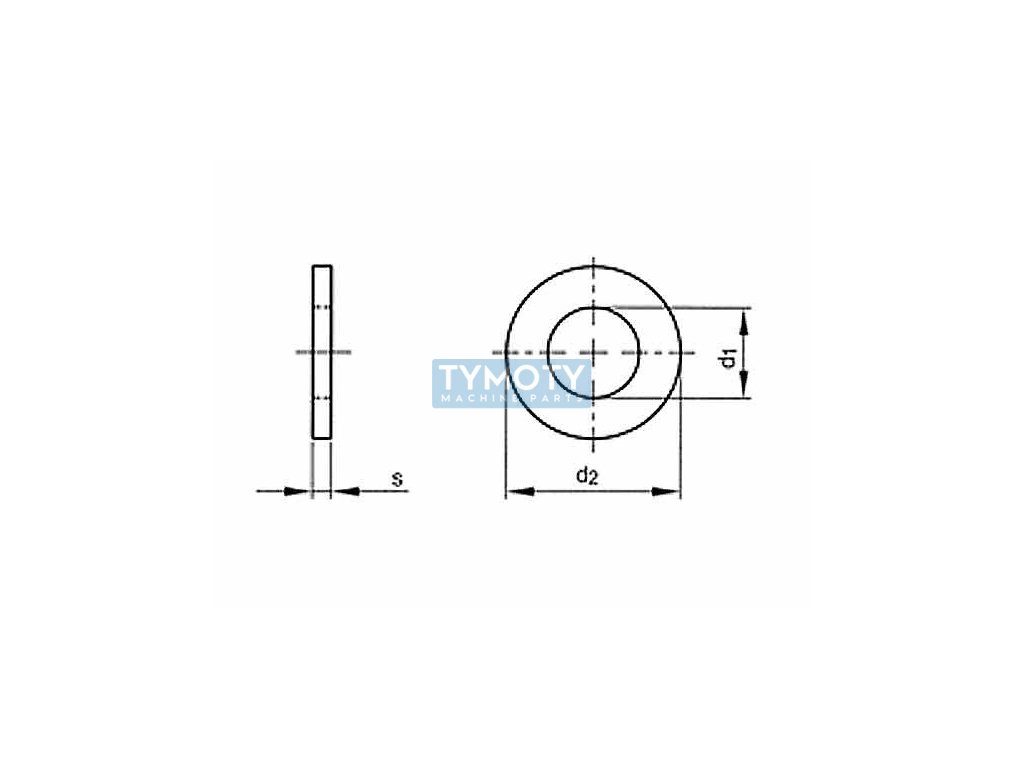

The dimensions of the ring are as follows: inner diameter 12 mm, outer diameter 20 mm and thickness 1.5 mm. The material from which the ring is made is copper, which is known for its excellent thermal and electrical conductivity, as well as corrosion resistance. These properties make the copper ring an ideal choice for applications where reliable sealing is required under various temperature and pressure conditions.

The use of this sealing ring is common in various industrial sectors, including the automotive, mechanical engineering and chemical industries, where a high level of tightness and reliability is required. Due to its design and material properties, it is suitable for applications where frequent disassembly and reassembly of joints occurs, while maintaining its sealing capabilities.
