Sealing ring AL 8x12x1.5

Product detailed description

The AL 8x12x1.5 sealing ring is a flat aluminum component intended for use in detachable sealing joints. This ring meets the standards DIN 7603A and ČSN 02 9310.3, which guarantees its suitability for applications where it is necessary to ensure a reliable seal between non-moving parts.

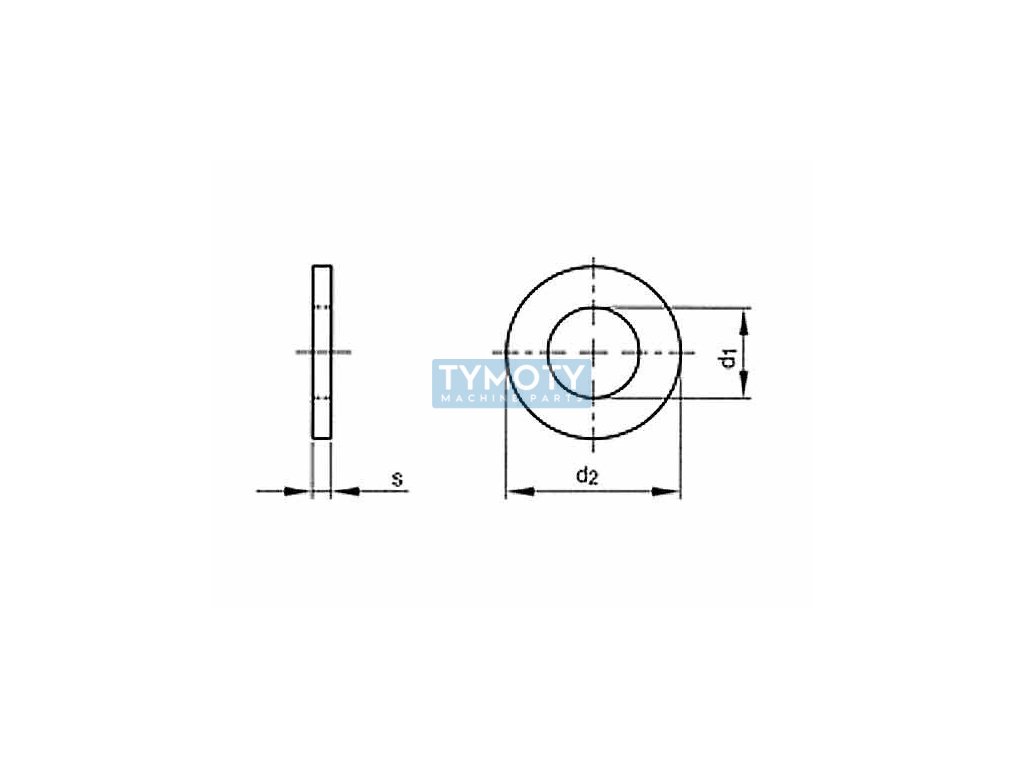

The dimensions of the ring are 8 mm inner diameter, 12 mm outer diameter and 1.5 mm thickness. The material from which the ring is made is aluminum, which gives it excellent properties such as low weight, good thermal conductivity and corrosion resistance. These properties are particularly important in applications where it is necessary to minimize weight and ensure long-term resistance to external influences.

The ring is designed for use as a compressed seal, which means that during assembly it is exposed to pressure, which ensures its sealing function. Due to its design, it is suitable for applications in the automotive, mechanical engineering and energy industries, where reliable sealing in systems with liquids or gases is required.

The use of this sealing ring is ideal in situations where it is necessary to ensure repeated assembly and disassembly of joints without loss of sealing ability, which is important for maintenance and service of equipment.
