Screw with slot Phillips DIN 7985 M5x12 stainless steel A2

Product detailed description

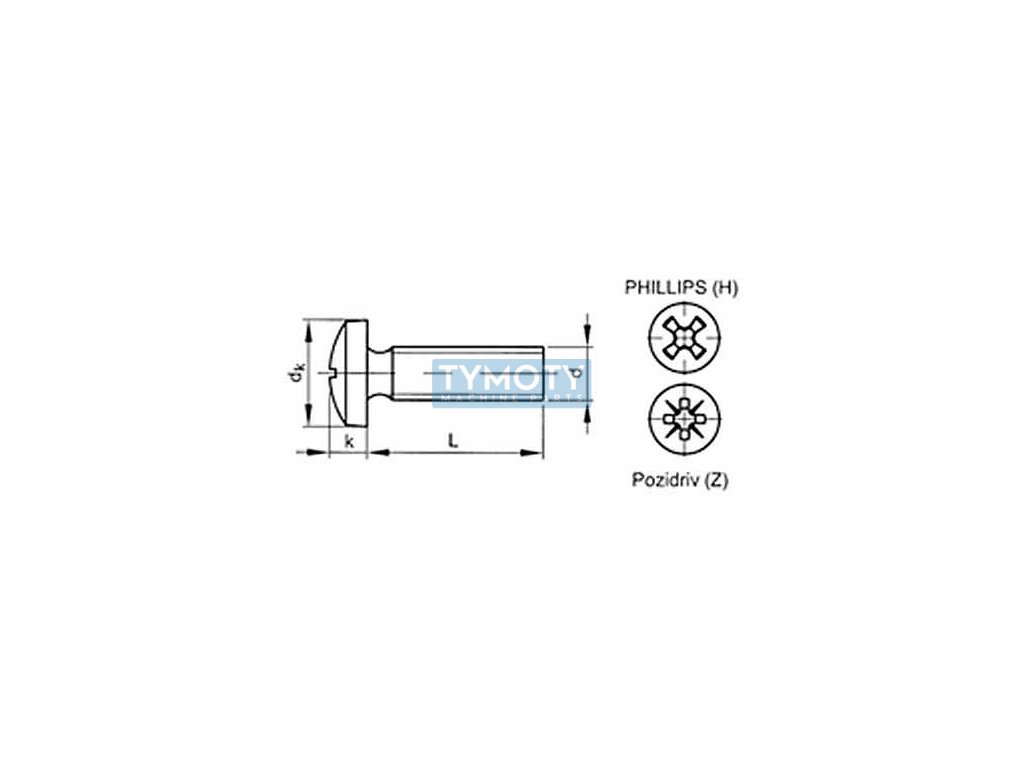

The Phillips cross recessed pan head screw, marked according to DIN 7985, ISO 7045 and ČSN 02 1147, is made of A2 grade stainless steel. This screw has a metric thread with a diameter of M5 and a length of 12 mm. The thread pitch is 0.80 mm, which corresponds to standard metric threads, and allows for a reliable connection of components.

The screw head is cylindrical in shape with a diameter of 10 mm and a height of 3.95 mm. The head shape is designed to provide an optimal contact surface for the tool and increase stability during assembly. The Phillips cross recess, marked as H2, ensures easy and effective tightening with standard tools such as cross-head screwdrivers.

The A2 stainless steel material provides high corrosion resistance, making this screw suitable for use in environments with higher humidity or chemical exposure. The screw has no additional surface treatment, thus maintaining the natural resistance of stainless steel.

This screw is ideal for applications where high corrosion resistance and a reliable mechanical connection are required. It is suitable for use in various industries, including engineering, construction and equipment manufacturing, where precision and durability of connections are required.
