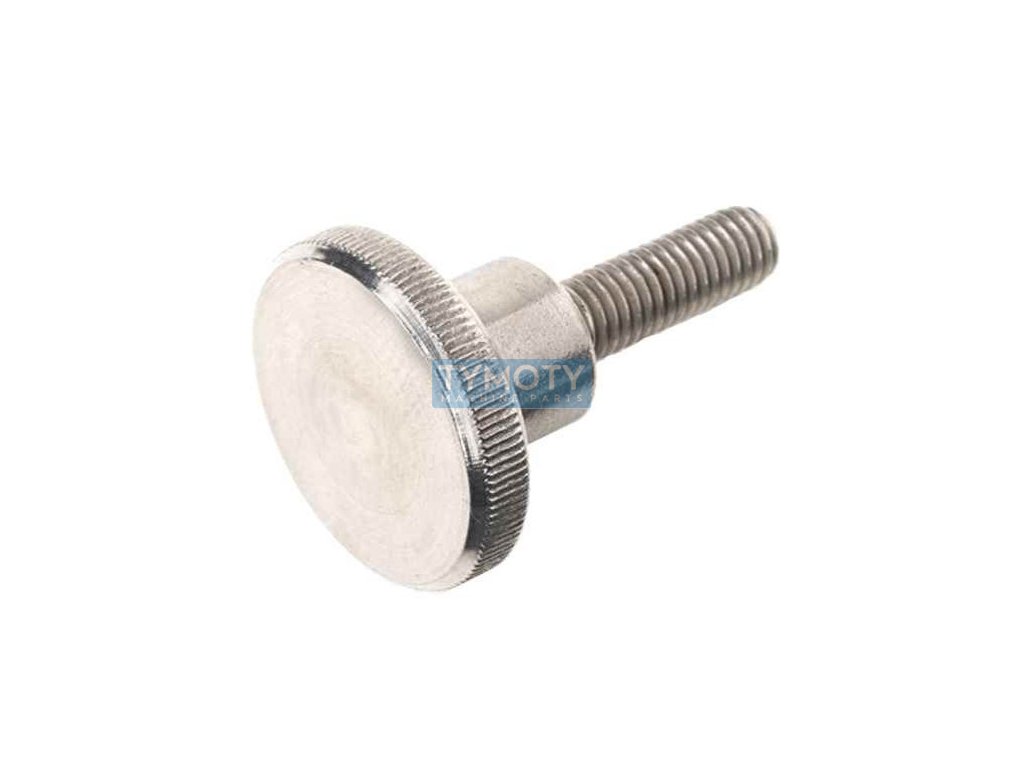

Screw with cylindrical knurled head DIN 464 M8x25 stainless steel A1
Code: 895930
Product detailed description
Slotted head screw ČSN 021161 - DIN 464, stainless steel A1Additional parameters
| Category: | Fasteners > cap screws > grooved DIN 464 > stainless steel A1 |
|---|---|
| Weight: | 0.058 kg |
| EAN: | 4043952701553 |
| CSN standard: | 021161 |
| Diameter D (mm): | M8 |
| Diameter d1 (mm): | 16 |
| Diameter dk (mm): | 30 |
| DIN standard: | 464 |
| Fortress class: | A1 |
| Head shape: | cylindrical |
| Height H (mm): | 18 |
| Height k (mm): | 6 |
| Length L (mm): | 25 |
| Material: | stainless steel |
| Pitch: | 1,25 |
| Thread type: | metric |
